Thermocouple Instrumentation

• Available in 8, 16, 24, or 32 channels
• Thermocouple Input version accepts any combination of J, K, T, E, B, N, R, S
• RTD Input version accepts PT100 (2- or 3-wire)
• Dual Limit Alarm trip points adjustable per channel
• RS-485 serial communication interface

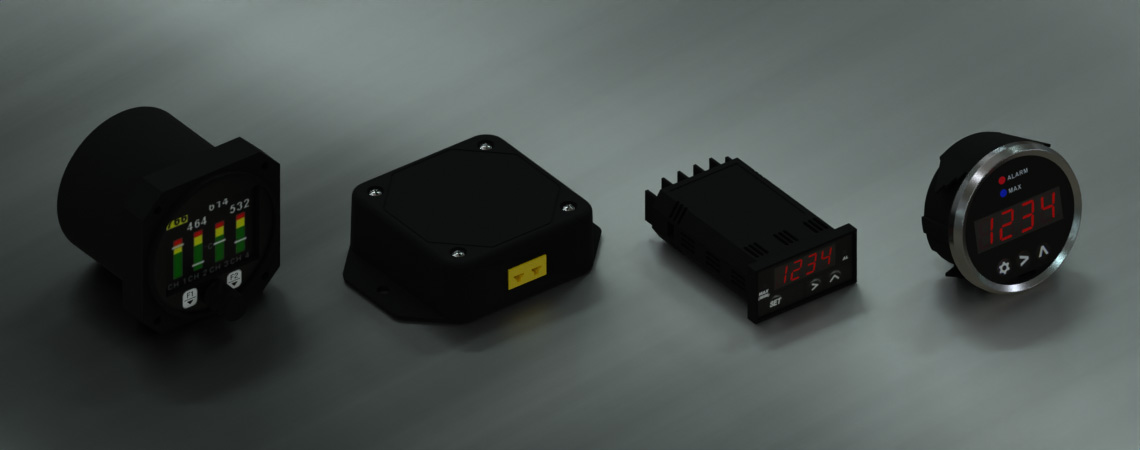

• Accepts thermocouple, RTD, Ω, mV, Volt, or mA input (user selectable)
• Max temperature "Peak hold" display capture capability
• High set-point alarm LED warning with internal relay contact
• Miniature Size, Panel cutout is 1.77" x 0.87" (45 x 22 mm) (1/32 DIN)
• 12 or 24 VDC powered

• Accepts thermocouple, RTD, Ω, mV, Volt, or mA input (user selectable)
• Max temperature "Peak hold" display capture capability
• High set-point alarm LED warning with internal relay contact
• 12 or 24 VDC powered
• Analog retransmission output (4 to 20 mA or 0 to 5 VDC)

• User can configure display as 1, 2, 3 or 4 channels
• 2-1/4" (57 mm) Round Gauge
• Recall Max temperature "Peak hold" capability
• Programmable High Temperature set-point alarm
• Each individual input channel can be labeled as either EGT or CHT
• °F/°C selectable

• User can configure display as 2, 4, 6, 8, 10, or 12 channels
• 3-1/8" (80 mm) Round Gauge
• Recall Max temperature "Peak hold" capability
• Programmable High Temperature set-point alarm
• Each individual input channel can be labeled as either EGT or CHT
• °F/°C selectable

• Small Size ~ 1.5" high x 3.0" wide x 1.75" deep
• Max temperature "Peak hold" display capture capability
• High set-point alarm with internal relay contact
• NEMA4X / IP65 Sealed Front Bezel
• Made in USA

• Dual Channel
• Portable battery powered digital LCD temperature display readout
• °C/°F selectable
• Max, Min, Average, T1-T2, and Hold functions
• For Type K or J thermocouple sensor

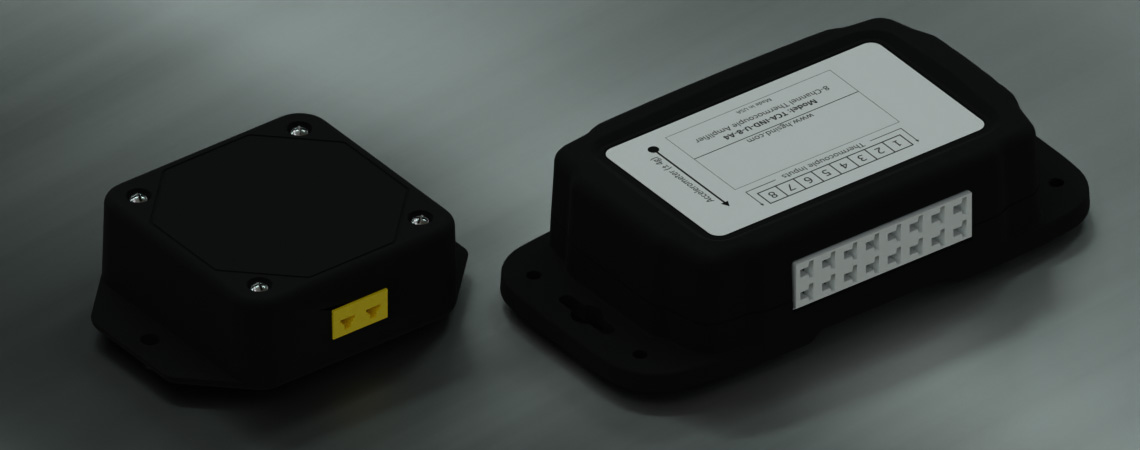

• Thermocouple Input: Type K
• Linearized Analog Output: 0 to 5 VDC
• Supply Voltage: 10 to 32 VDC
• 1 mS Response Time
• Quick Connection via Mini-Thermocouple Plug (included)
• Compact Size, only 2.5" x 2.5" x 0.9"

• Thermocouple Input: Type K (8 independent input channels)
• Linearized Analog Output: -0.5 to 5 VDC (8 independent output channels)
• Supply Voltage: 10 to 32 VDC
• On-board CJC
• Includes (8) mini-plug signal input connectors
• Includes detachable signal output/power wiring harness
• Compact Size, only 7.0" x 3.5" x 1.6"

• Thermocouple Input: Type J, K, T and more (8 independent input channels)
• Linearized Analog Output: 0 to 5 VDC (8 independent output channels)
• Includes programming software GUI (USB connection to PC)
• Supply Voltage: 10 to 28 VDC
• On-board CJC
• Includes (8) mini-plug signal input connectors
• Includes detachable signal output/power wiring harness & USB cable
• Compact Size, only 7.0" x 3.5" x 1.6"

2 wire Audible Piezo Buzzer

• AC Input: 100V to 240V, DC Output: 12 volt at 2 amp
• Regulated switching power supply
• Long 8 foot cord

• AC Input: 100V to 240V, DC Output: 24 volt at 0.6 amp
• Regulated switching power supply
• DC voltage output is adjustable via screw potentiometer
