Linear Potentiometer Position Sensors
Pricing or Technical Questions?Contact Us

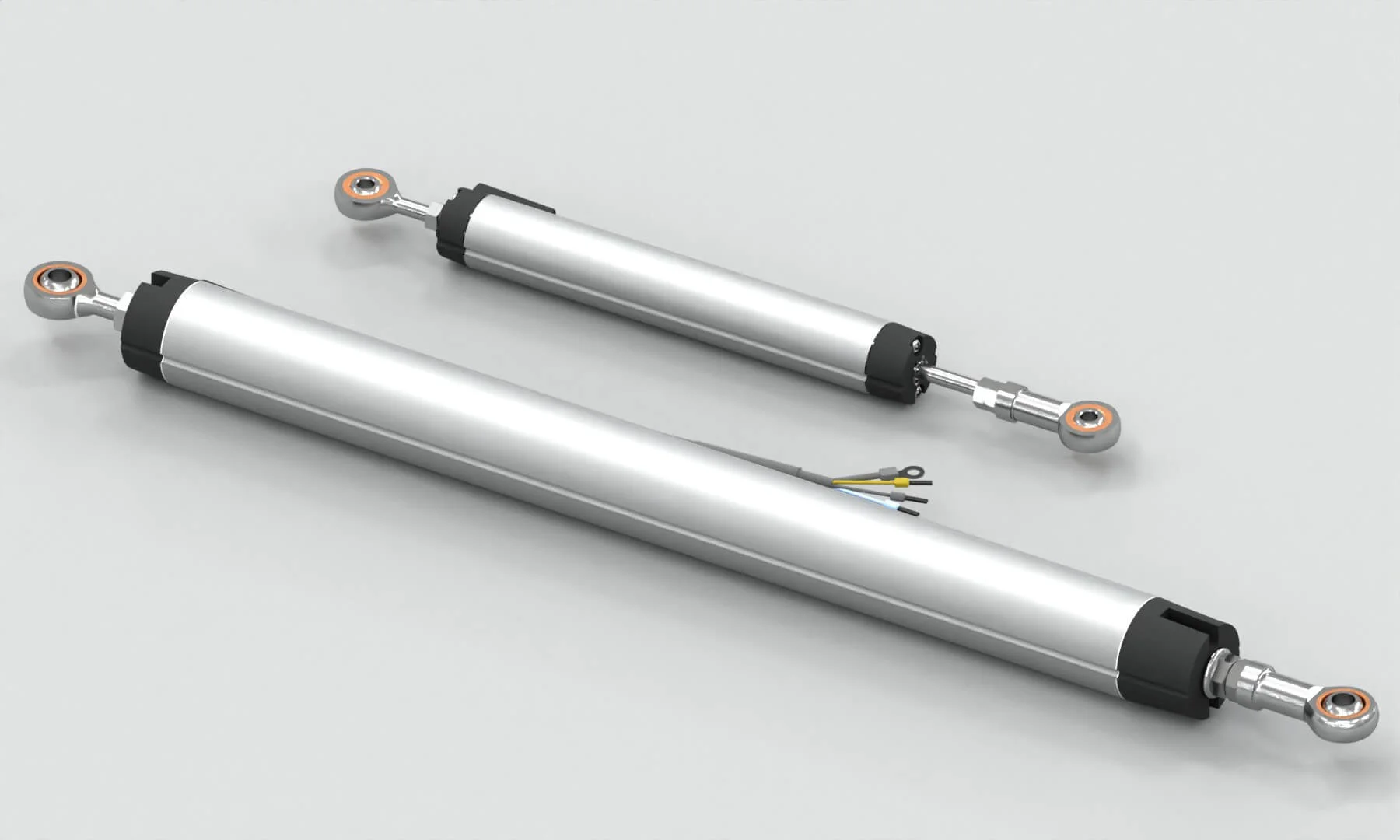

• LPPS-12 Series
• Slim Body Linear Potentiometer
• Stroke lengths available from 25 to 300 mm (1 to 12 inches)
• Rod End Joints for simple mounting
• Environmental rating of IP61
• Compact Size, housing is 0.47" (12 mm) diameter
• LPPS-22 Series
• Ruggedized Linear Potentiometer
• Stroke lengths available from 25 to 300 mm (1 to 12 inches)
• Rod End Joints for simple mounting
• Environmental rating of IP61
• Compact Size, housing is 0.90" (22 mm) diameter
• LPPS-36B Series
• Ruggedized Linear Potentiometer
• Stroke lengths available from 350 mm up to 700 mm (14 to 28 inches)
• Rod End Joints for simple mounting
• Environmental rating of IP61 (Dust tight, Water resistant)
• Housing is 1.4" (36 mm) diameter

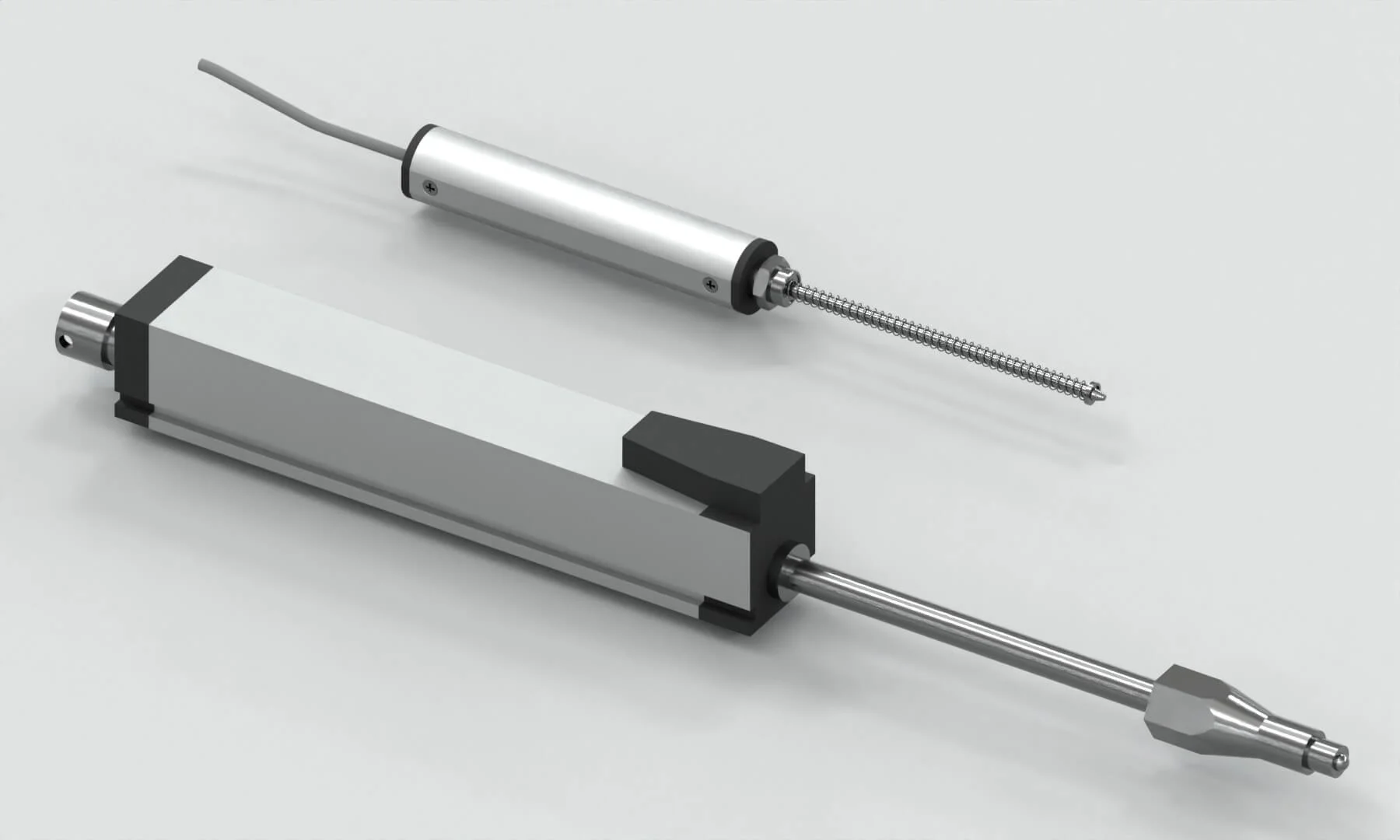

• Spring Loaded Linear Potentiometer
• Stroke lengths available from 10 to 100 mm (0.4 to to 4 inches)
• Environmental rating of IP61
• Compact Size, housing is 0.7" x 0.7" (18 mm x 18 mm) square
• Spring Loaded Miniature Linear Potentiometer
• Stroke lengths available from 5 to 100 mm (0.2 to to 4 inches)
• Environmental rating of IP61
• Compact Size, housing is 0.63" (16 mm) diameter
