OVERVIEW
• Slim Body Linear Potentiometer
• Measure the linear motion or position of target
• Stroke lengths available from 25 to 300 mm (1 to 12 inches)
• Rod End Joints for simple mounting
• Anodized aluminum corrosion resistant housing
• Environmental rating of IP61 (Dust tight, Water resistant)
• Compact Size, only 0.47" (12 mm) diameter

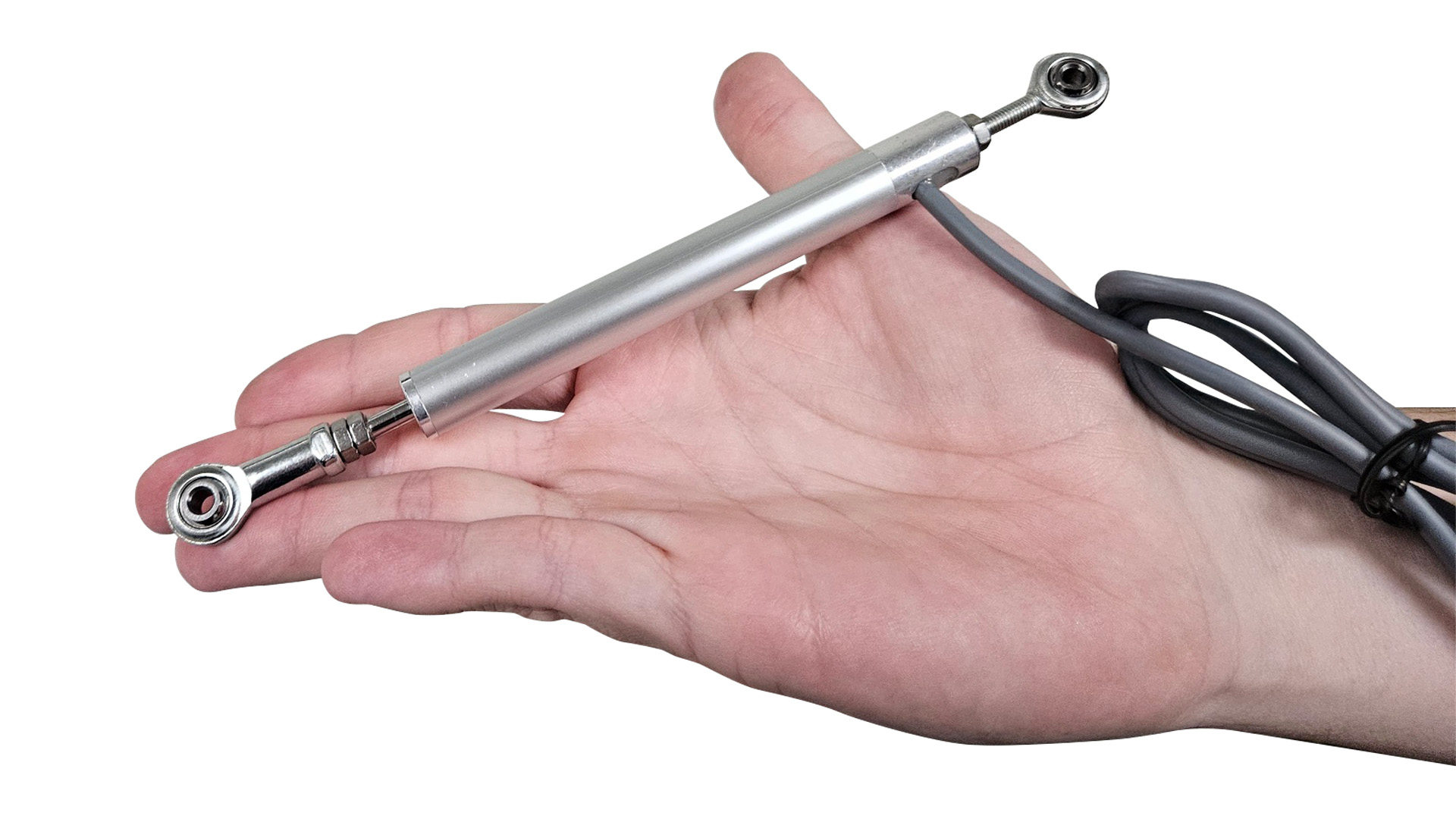

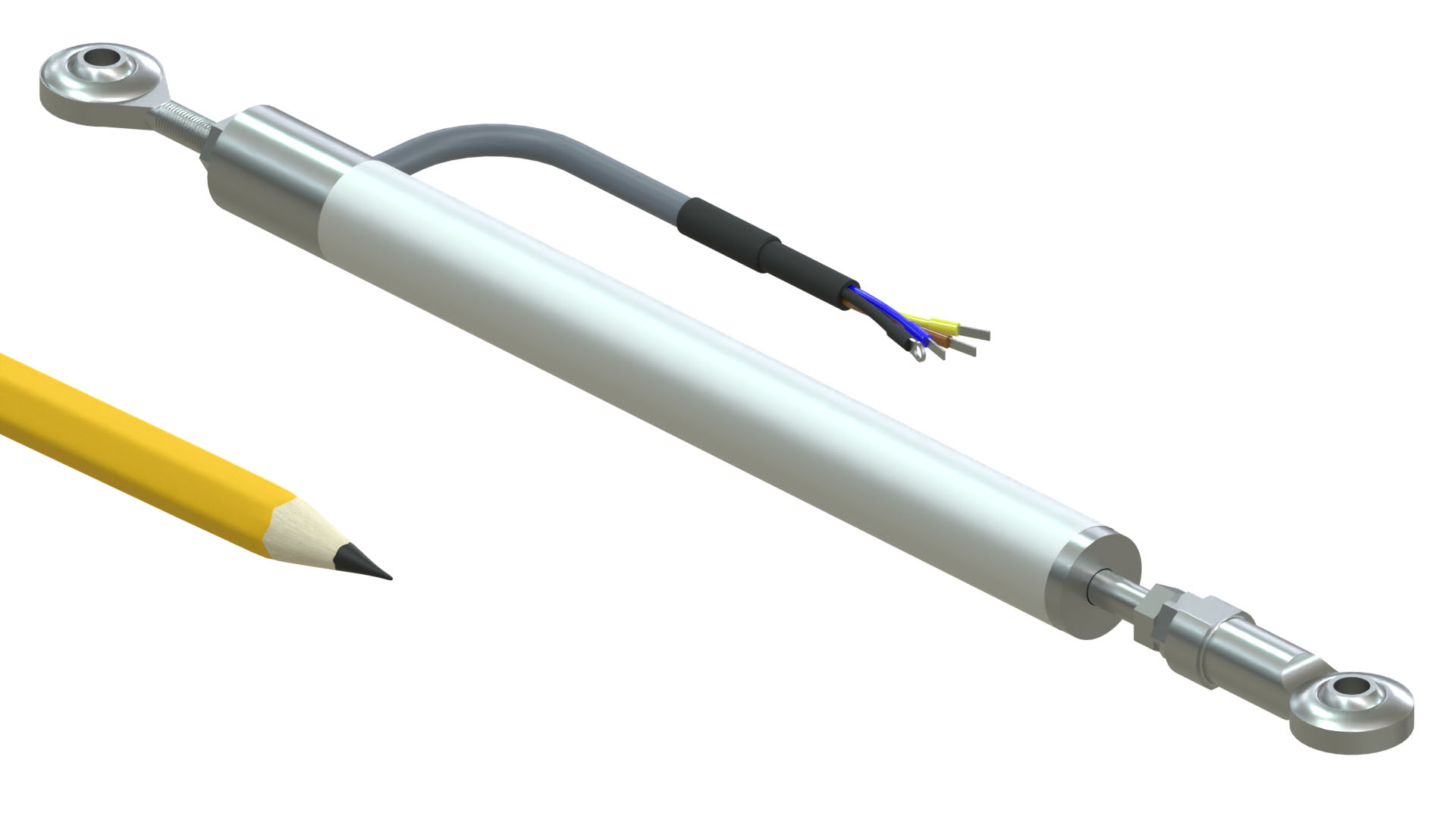

HGSI's LPPS-12 series Linear Potentiometer Travel Sensor with Rod End Joints are used to monitor and track the linear motion or position of a target. These ruggedized sensors are ideal for use in industrial and laboratory applications including automotive, industrial, motion control, medical, and aerospace.
Resistive potentiometric element is made from conductive plastic. Output is ratiometric; from 0% to 100% of excitation voltage.
The LPPS-12 series sensor is made from industrial duty materials for resistance to dust, temperature, shock, and vibration.
Rod End Joint thru-holes are 5 mm in diameter.
Options:
TECHNICAL SPECIFICATIONS
| Stroke Lengths: | 1" (25mm), 2" (50mm), 3" (75mm), 4" (100mm), 5" (125mm), 6" (150mm), 7" (175mm), 8" (200mm), 10" (250mm) and 12" (300 mm) |
| Mechanical Stroke Length: | Stroke Length + 0.12" (3 mm) |
| Non-Linearity (BFSL method): | </= +/- 2.5% of full stroke |
| Resolution: | Infinite |
| Repeatability: | 0.0004" (0.01 mm) |
| Maximum Operating Velocity: | 5 m per second |
| Element Type: | Conductive plastic |
| Output: | 0 to 100% of excitation voltage |
| Element Resistance: | 1.0" range unit = 2.0K ohm (+/- 20%), 2.0" to 12.0" range units = 5.0K ohm (+/- 20%) |
| Current Draw: | ~10 mA (nominal) |
| Output Cable: | 3 conductor with drain, 22 AWG, PVC jacket, 3 foot long |
| Operating Temperature Range: | -40 to +195°F (-40 to +95°C) |
| Thermal Coefficient of Sensitivity: | <0.03%/°C nominal |
| Humidity: | 95% Max. RH (non-condensing) |
| Liquid & Dust Protection: | IP61 |
| Shock Rating: | 50g (single hit), IEC68-2-29:1968 |
| Vibration Rating: | 20g, IEC68-2-6:1982 |
| Housing Dimension (O.D): | 0.47 inch (12 mm) |
