OVERVIEW
• Fast Response

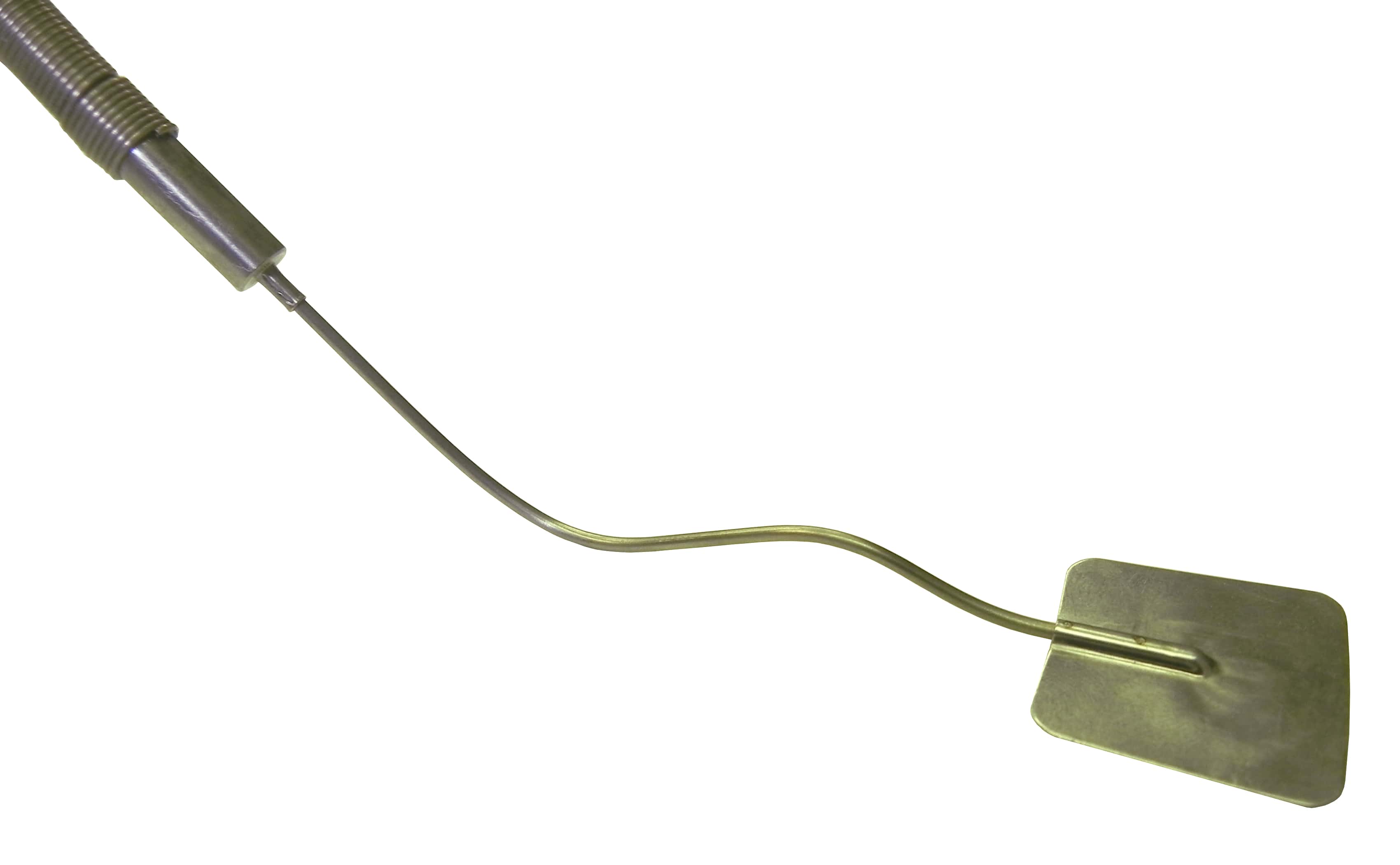

• Flexible Stainless Steel pad, can be attached to flat or curved surface

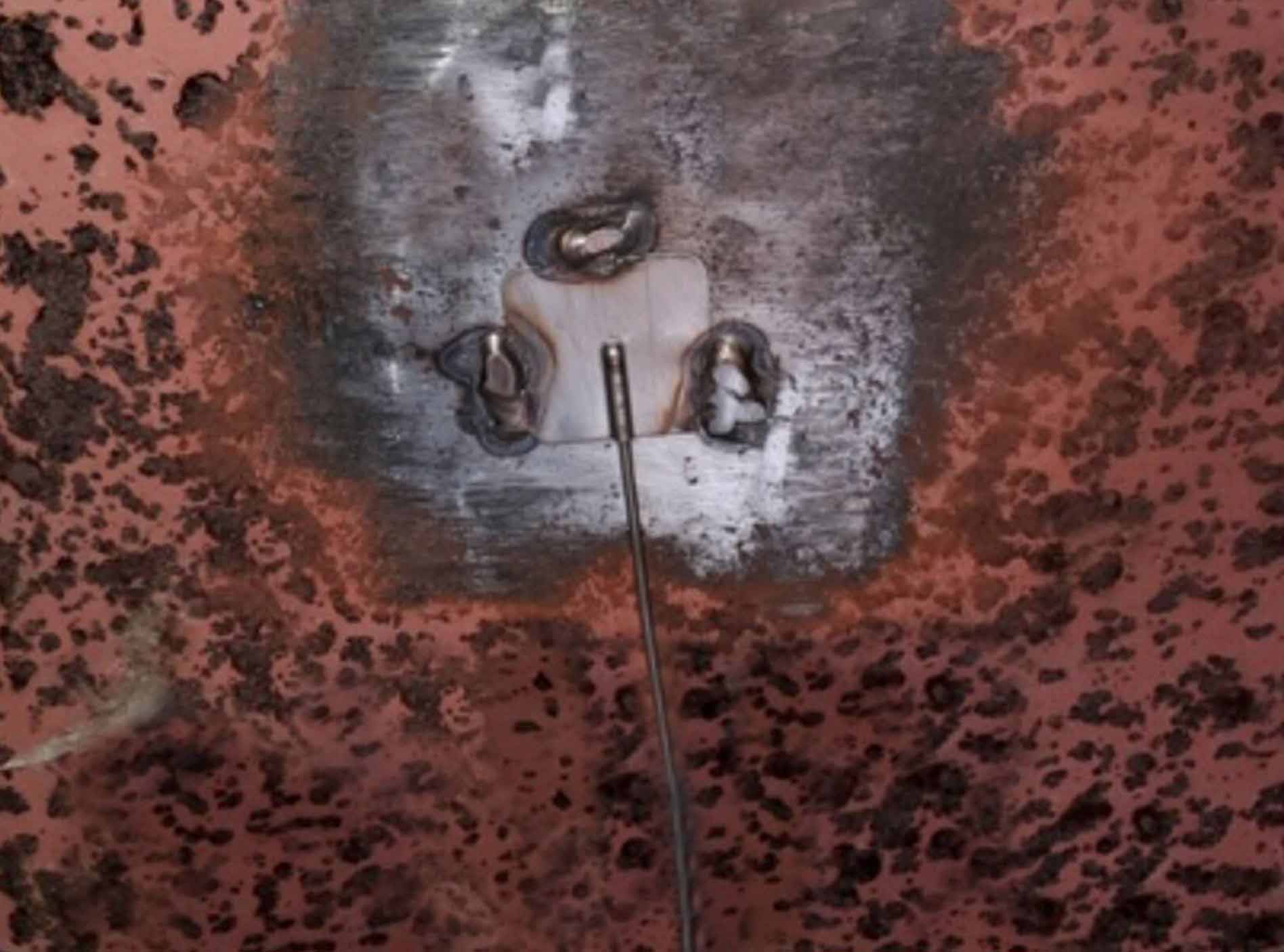

• Pad can be brazed, welded, cemented, or clamped to surface
MADE IN THE USA

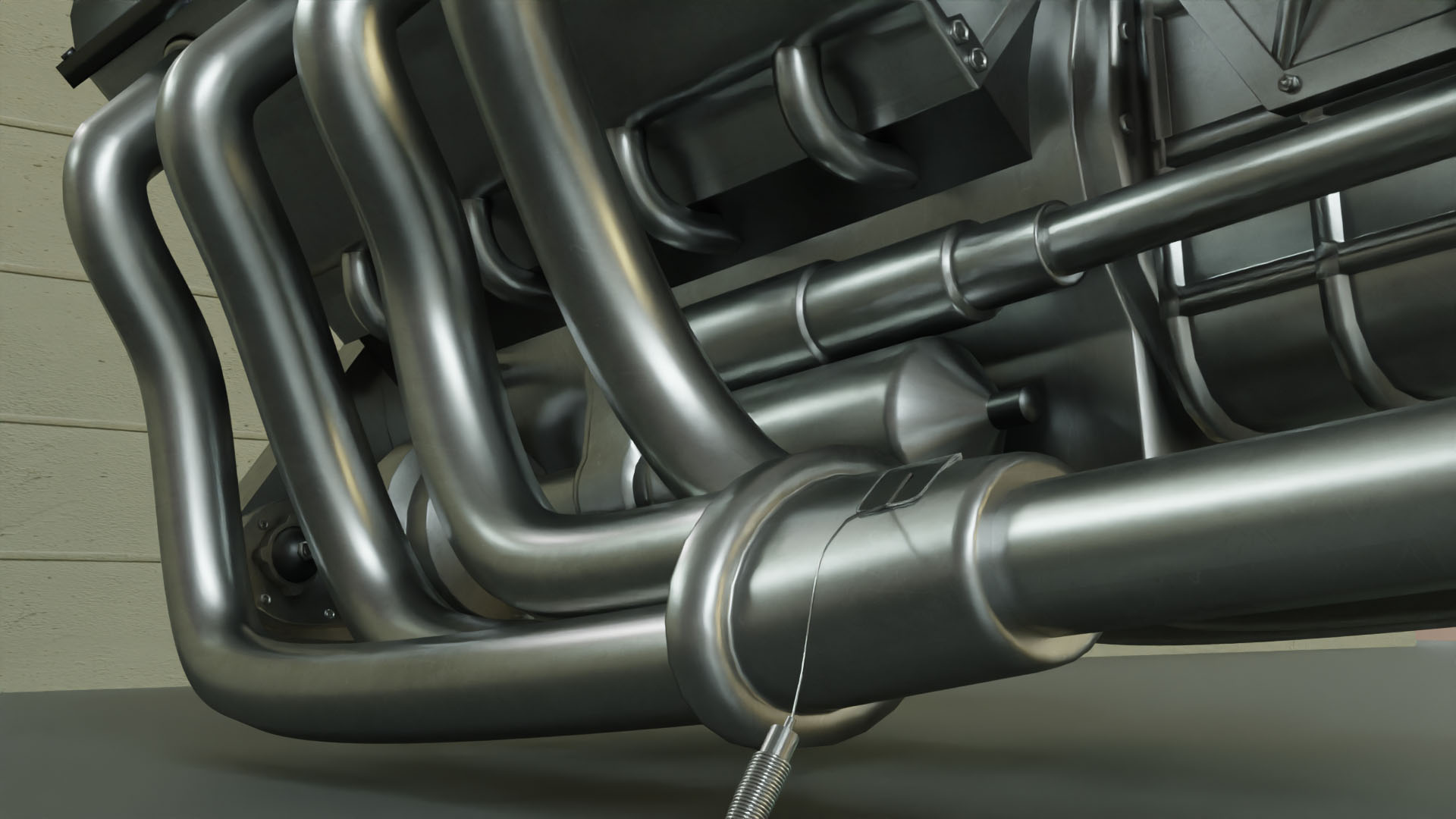

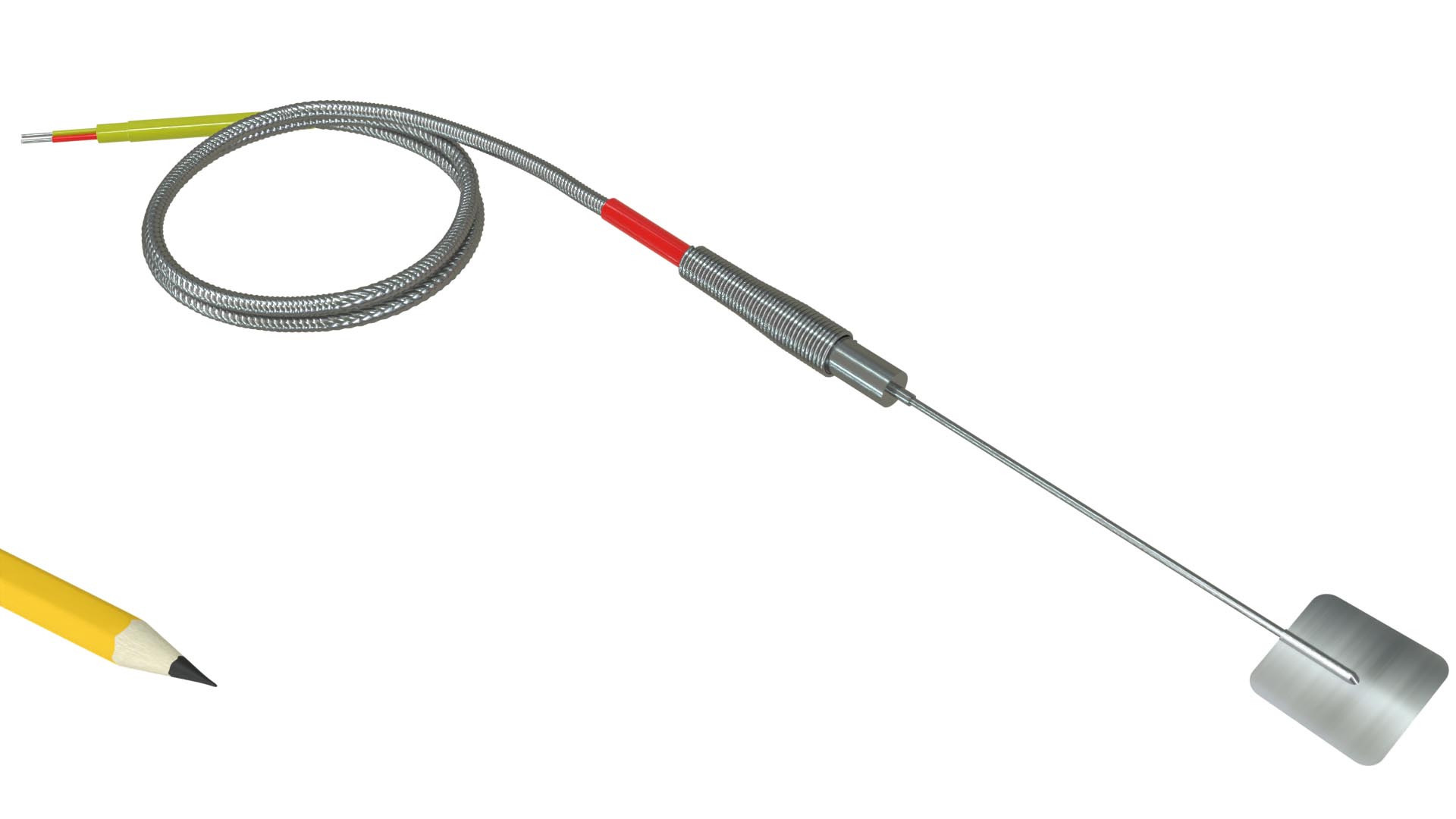

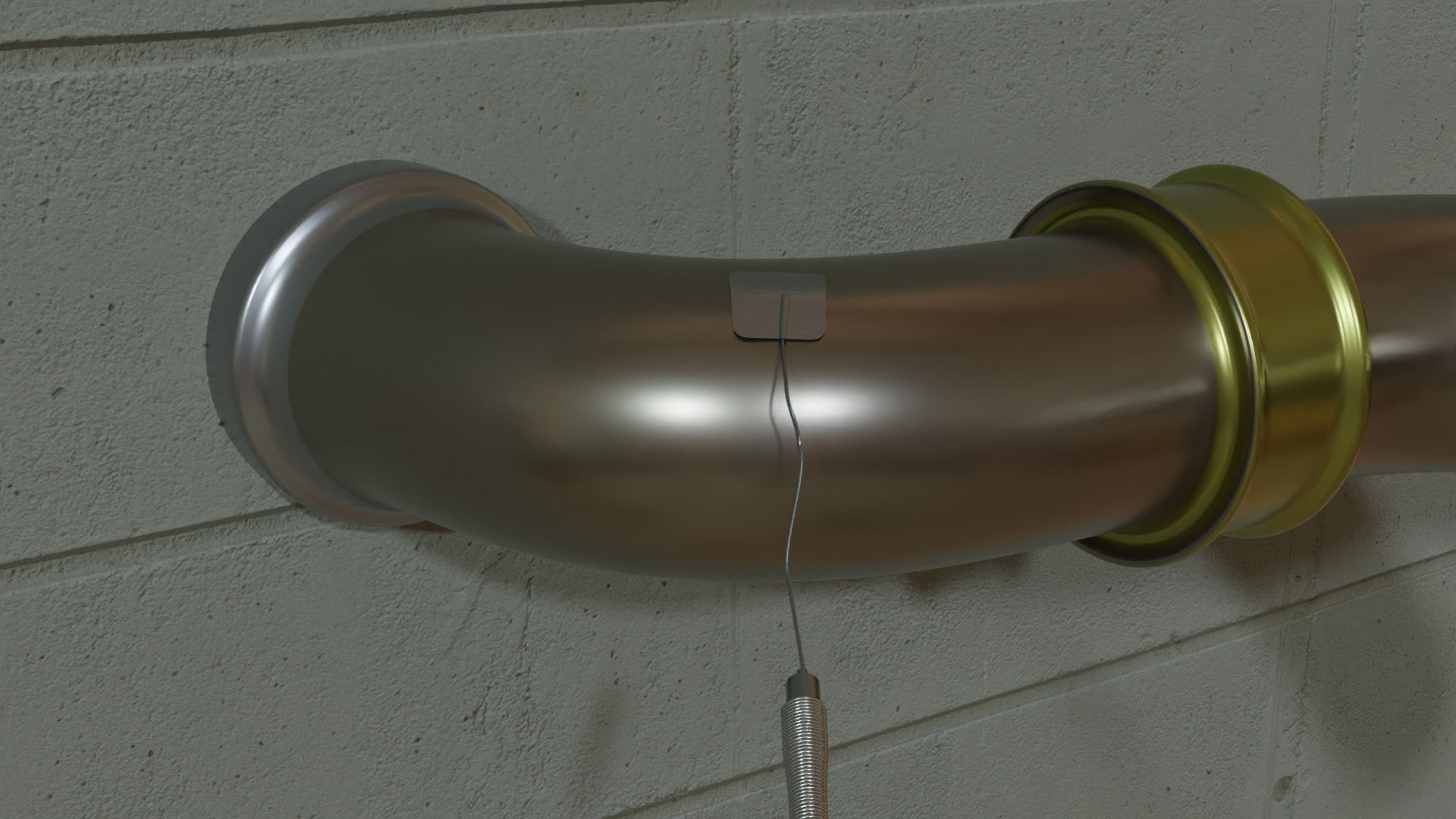

The Weld Pad Surface Temperature Thermocouple Probe is designed for use in industrial applications to measure surface temperature by way of attachment via weld, braze, cement, or clamp. The pad is flexible to easy form to the contour of a flat or curved surface. The probe is made in the USA with superior materials, designed to withstand even the most rigorous operating conditions.
Contact us for volume pricing. Custom configurations available.
Options:
TECHNICAL SPECIFICATIONS
|
Thermocouple type: |
Type J or K |
|
Sensing Junction: |
Ungrounded |
|
Operating Range: |
-148°F to 2372°F range (-100°C to 1300°C) |
|
Accuracy: |
Special Limits of Error accuracy (greater of +/- 0.4% of reading or +/- 1.1°C) |
|
Probe Diameter: |
1/16 inch (0.062 inch) (1.6 mm) |
|
Sheath: |
Inconel 600 protective sheathing for longevity at high temperatures |
|

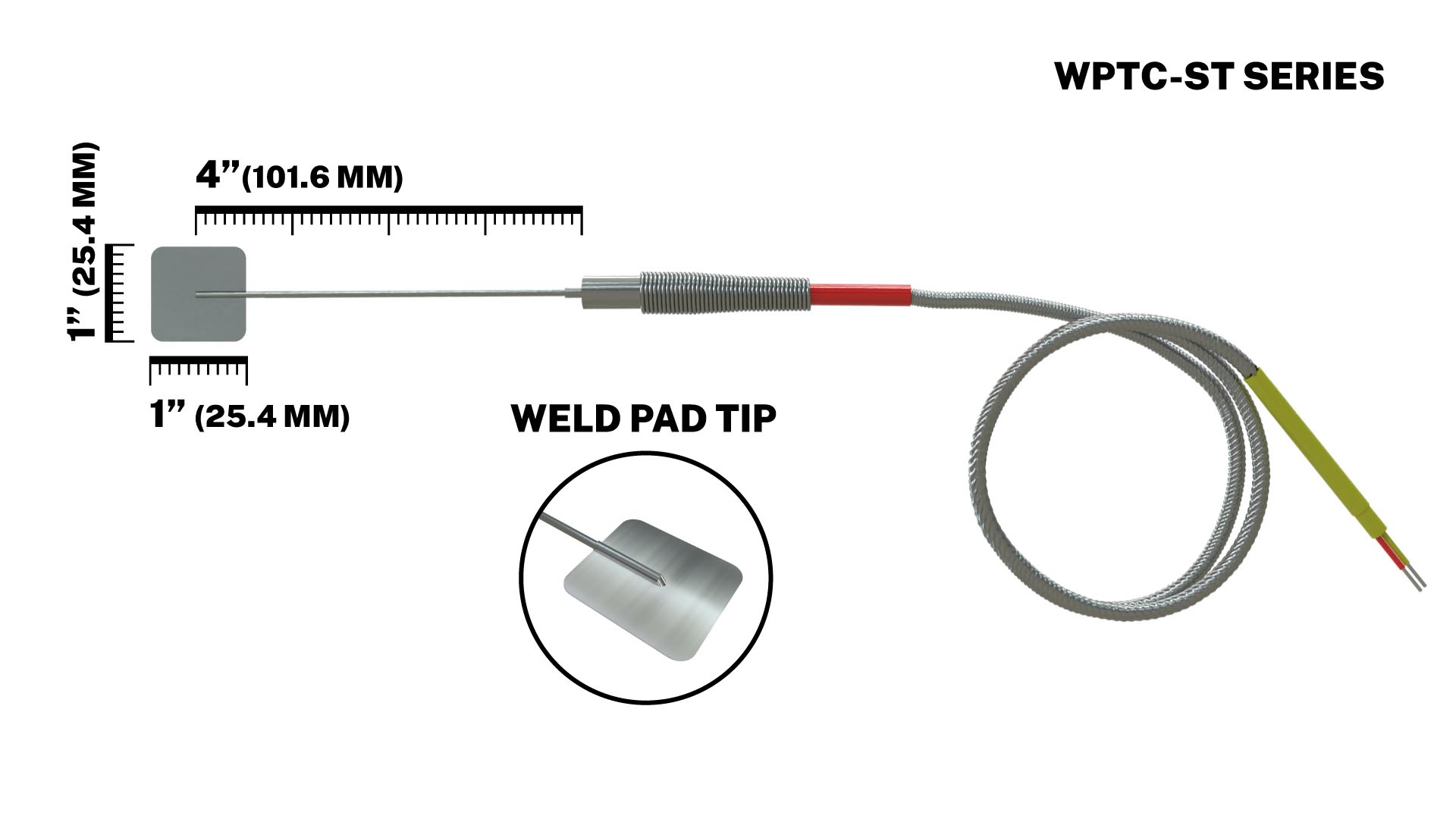

Pad Dimensions: |
1.0" x 1.0" x 0.01" (25mm x 25mm x 0.25mm) |
|
Pad Material: |
304 stainless steel |
|
Cable: |
Stainless steel over-braid cable with FEP insulated conductors; 24AWG |
|
Response time constant: |
300 milliseconds |
