OVERVIEW
• Made with special limits of error materials
• MgO mineral insulated sheath
• Cable transition joint with spring strain relief

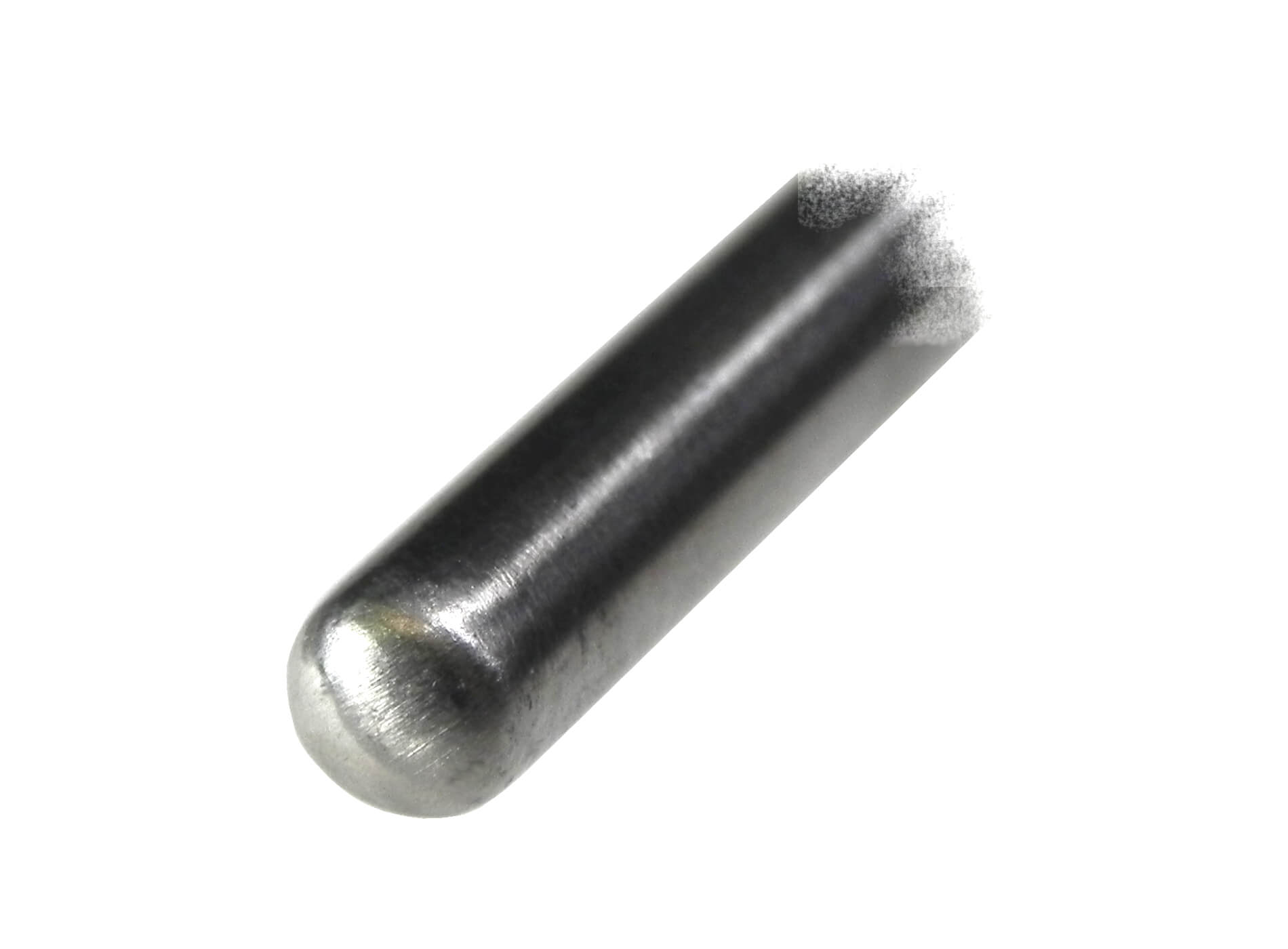

• Enclosed Sensing Junction

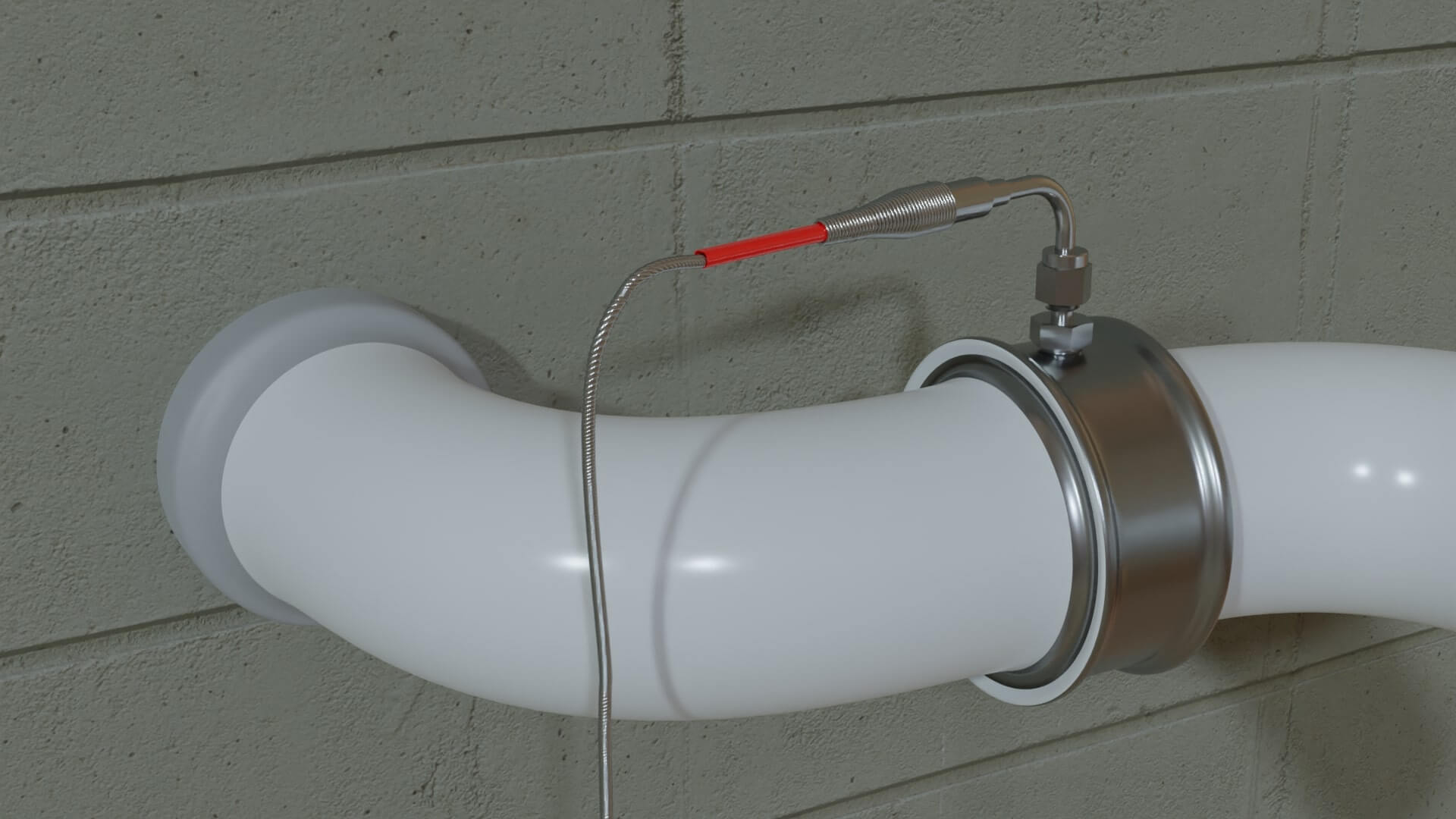

• Designed for industrial applications
MADE IN THE USA

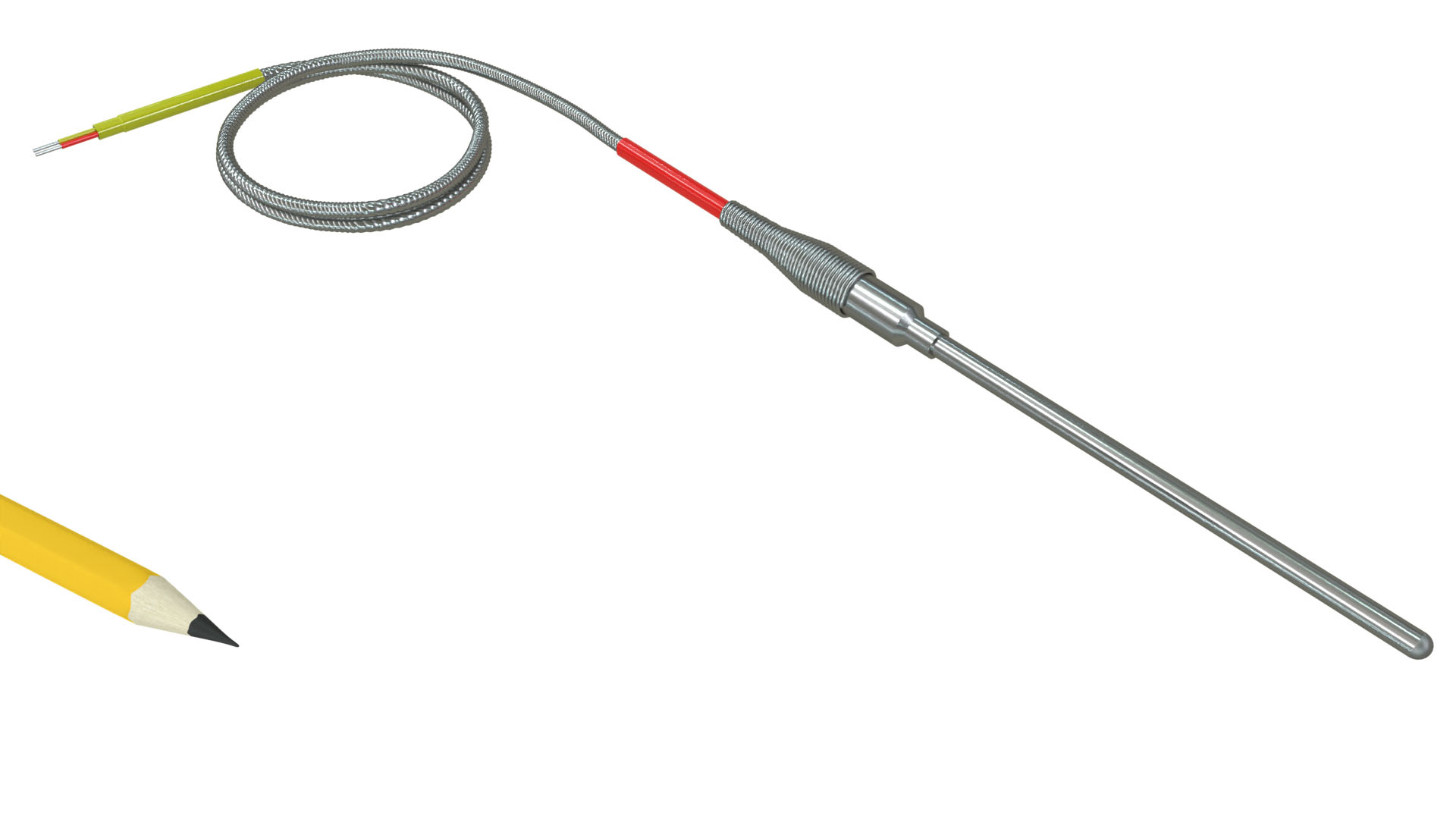

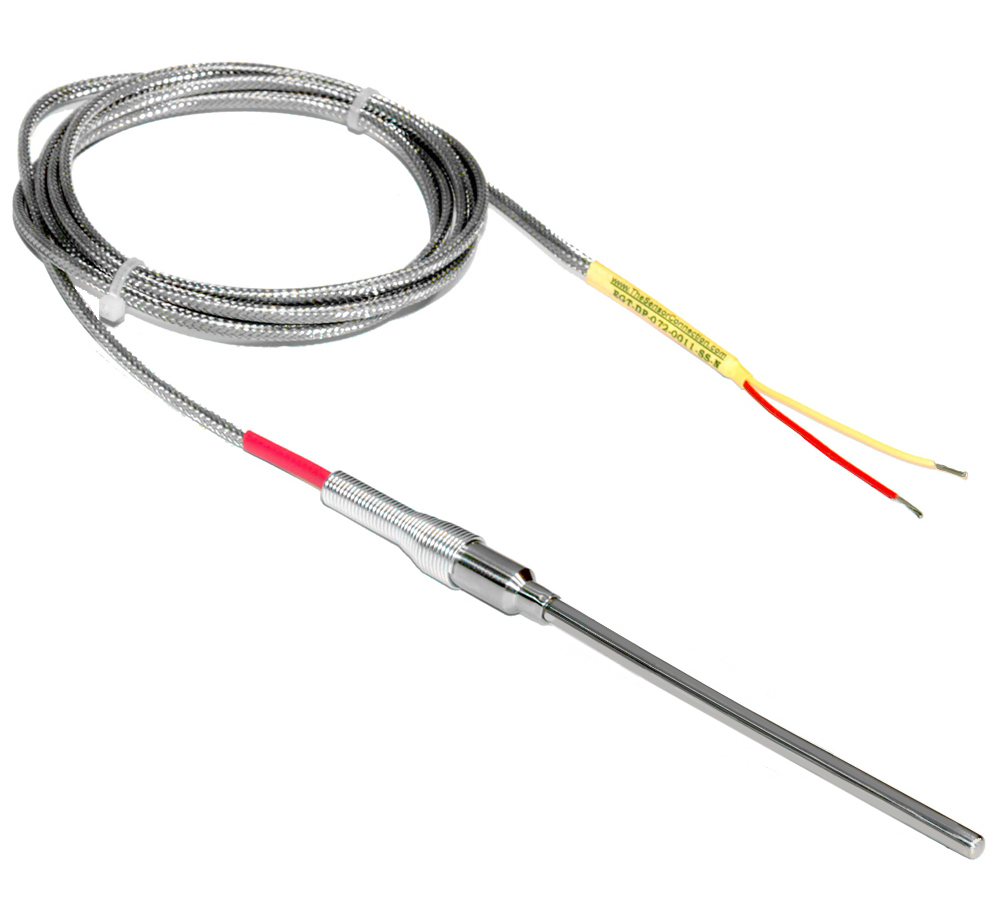

TTJ0 transition joint thermocouples are an ideal solution for temperature measuring applications. These thermocouples feature a heavy-duty transition joint with spring strain relief and special Limits of Error accuracy. The mineral sheath is insulated for high strength.
Contact us for volume pricing. Custom configurations available.
Options:
TECHNICAL SPECIFICATIONS
|
Thermocouple type: |
Type K |
|
Operating Range: |
-148°F to 2372°F range (-100°C to 1300°C) |
|
Accuracy: |
Special Limits of Error accuracy (greater of +/- 0.4% of reading or +/- 1.1°C) |
|
Probe Diameter: |
3/16 inch (0.187 inch) (4.75 mm) |
|
Max Tip Insertion Depth: |
2.8 inch |
|
Sheath: |
Inconel 600 protective sheathing for longevity at high temperatures, 0.023" (.58 mm), MgO insulated |
|
Cable: |
Stainless steel over-braid cable with FEP insulated conductors; 6, 12 or 25 foot |
|
Response time constant: |
1200 milliseconds |
