OVERVIEW
• PT100 Class A RTD Element
• 24 AWG FEP insulated conductors, stranded
• Easy installation, remove backing and press self-adhering Kapton (TM) Polyimide tape to surface
MADE IN THE USA

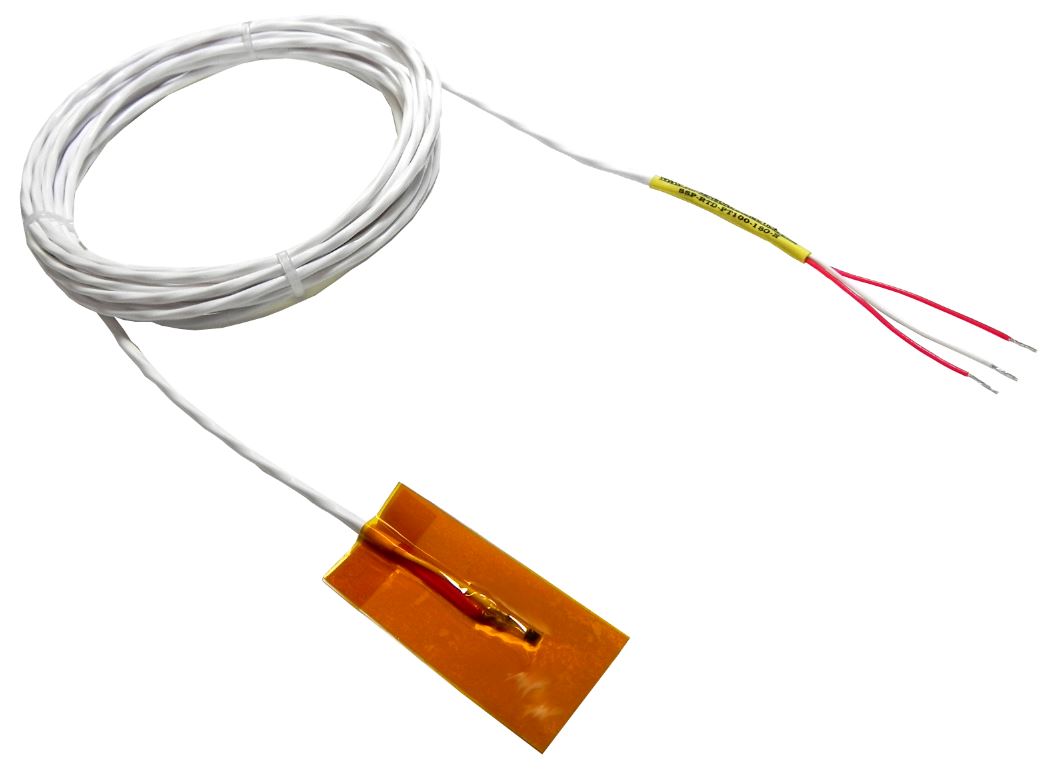

The Surface Mount Stick On RTD PT100 Sensor is designed for use in R&D and Testing applications. The self-adhering Kapton (TM) Polyimide tape patch will stick to clean, dry, smooth surfaces. For best results surface may need to be prepared beforehand by burnishing smooth. Kapton (TM) Polyimide tape patch can also be cemented to surface using an air set type Epoxy cement.
The Surface Mount Stick On RTD PT100 Sensor is designed to deliver high performance temperature measurements, reliably and consistently. These temperature sensors are designed for Research and Development, test labs, manufacturing engineering and production environments. They can be customized for OEM applications as well.
Contact us for volume pricing. Custom configurations available.
Options:
TECHNICAL SPECIFICATIONS
|
RTD Element Type: |
Thin film platinum, 100Ω at 0°C, α =0.00385 |
|
Range: |
-50 to 500°F (-45 to 260°C) |
|
Accuracy: |
Class A, +/- 0.15°C |
|
Tape dimensions: |
W = 1.0” x L = 2.0” (25.4 mm x 50.8 mm), Thickness 0.006” (0.15 mm) |
|
RTD Element dimensions: |
W = 0.09” x L = 0.08” (2.3 mm x 2.1 mm), Thickness 0.04” (0.9 mm) |
|
Response Time*: |
3 Seconds |
|
Lead Wire: |
Teflon™ insulated with Teflon™ outer jacket, 24 AWG, stranded conductors |
|
Wiring: |
3-Wire |
