SMBD-TC Surface Mount Bolt-down or Cement-on Thermocouple Sensor

OVERVIEW

Overstock from canceled order, 20% off normal price.

• 30 AWG FEP insulated conductors, solid
• Easy installation, cement-on or bolt-down
• Miniature size


MADE IN THE USA

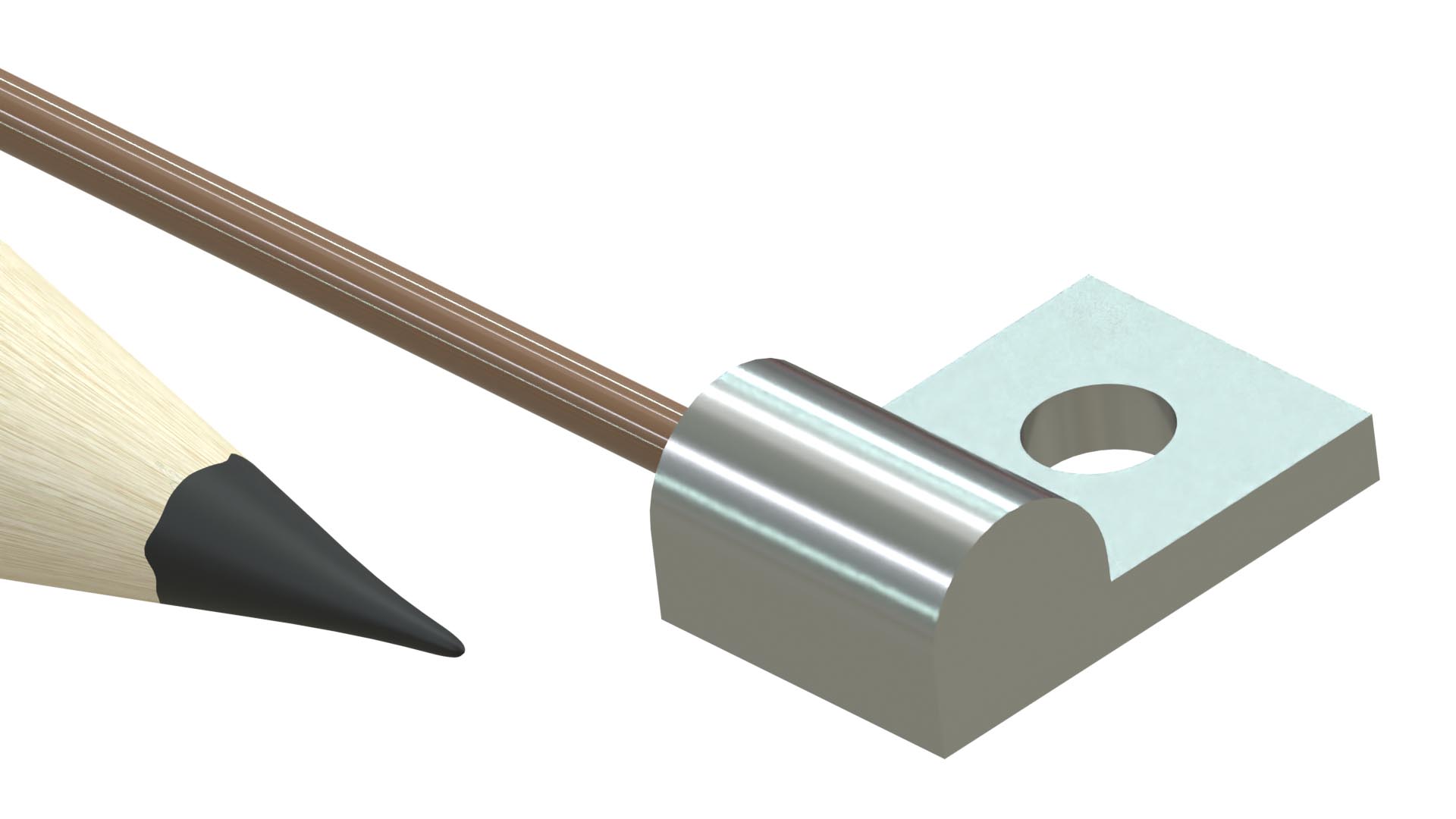

The SMBD-TC Surface Mount Bolt-Down or Cement-On Thermocouple Sensor is designed for use in R&D and Testing applications. The aluminum fitting may be bolted or cemented to almost any surface. For best results use a #4 screw or an air set type Epoxy cement.

The SMBD-TC Surface Mount Bolt-Down or Cement-On Thermocouple Sensor is designed to deliver high performance temperature measurements, reliably and consistently. These temperature sensors are designed for Research and Development, test labs, manufacturing engineering and production environments. They can be customized for OEM applications as well.

Contact us for volume pricing. Custom configurations available.

Options:

Thermocouple Type
Thermocouple Cable Length
Thermocouple Connector
SKU
SMBD-TC-120-U-J-MP
Availability
2 In Stock
0
Out of Stock
0
Discontinued
Off
Price
$39.50
Add to Cart

TECHNICAL SPECIFICATIONS

Thermocouple type: Type J
Junction:Ungrounded
Operating Temperature Range-90 to 500°F (-70 to 260°C)
Accuracy:Greater of +/-0.4% of reading or +/- 1.1°C (Special Limits of Error)
Housing Material:Aluminum
IP Rating:IEC IP64
Conductors:30 AWG FEP insulated conductors, solid

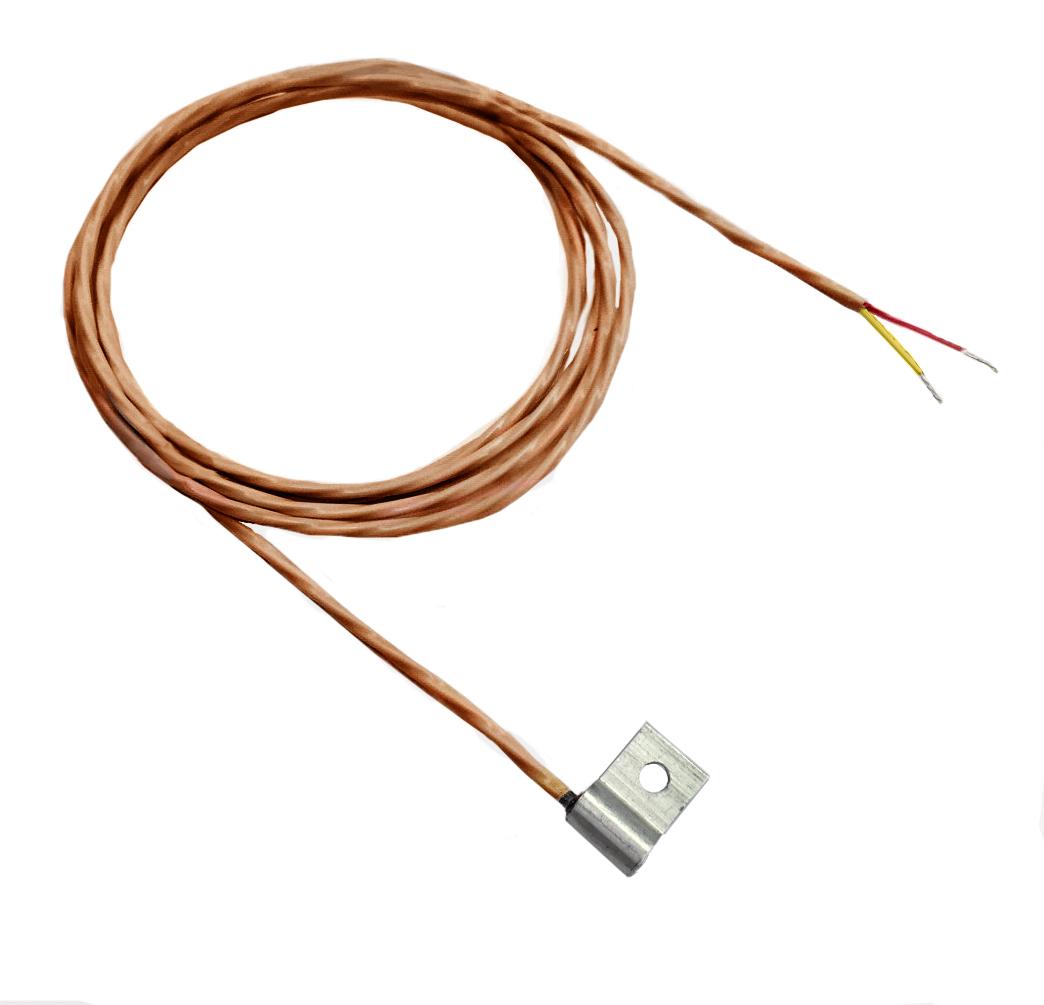

Wire:10 foot (3.05 meter) lead wire
Response Time: ~6 seconds
