OVERVIEW
• Measure surface temperature of ferrous metal materials
• Thermocouple probe tip is spring loaded
• FEP Insulated Lead Wire
• Ideal for Air or Surface Temperature Measurements
• Made in the USA
• Designed for research & development applications
MADE IN THE USA

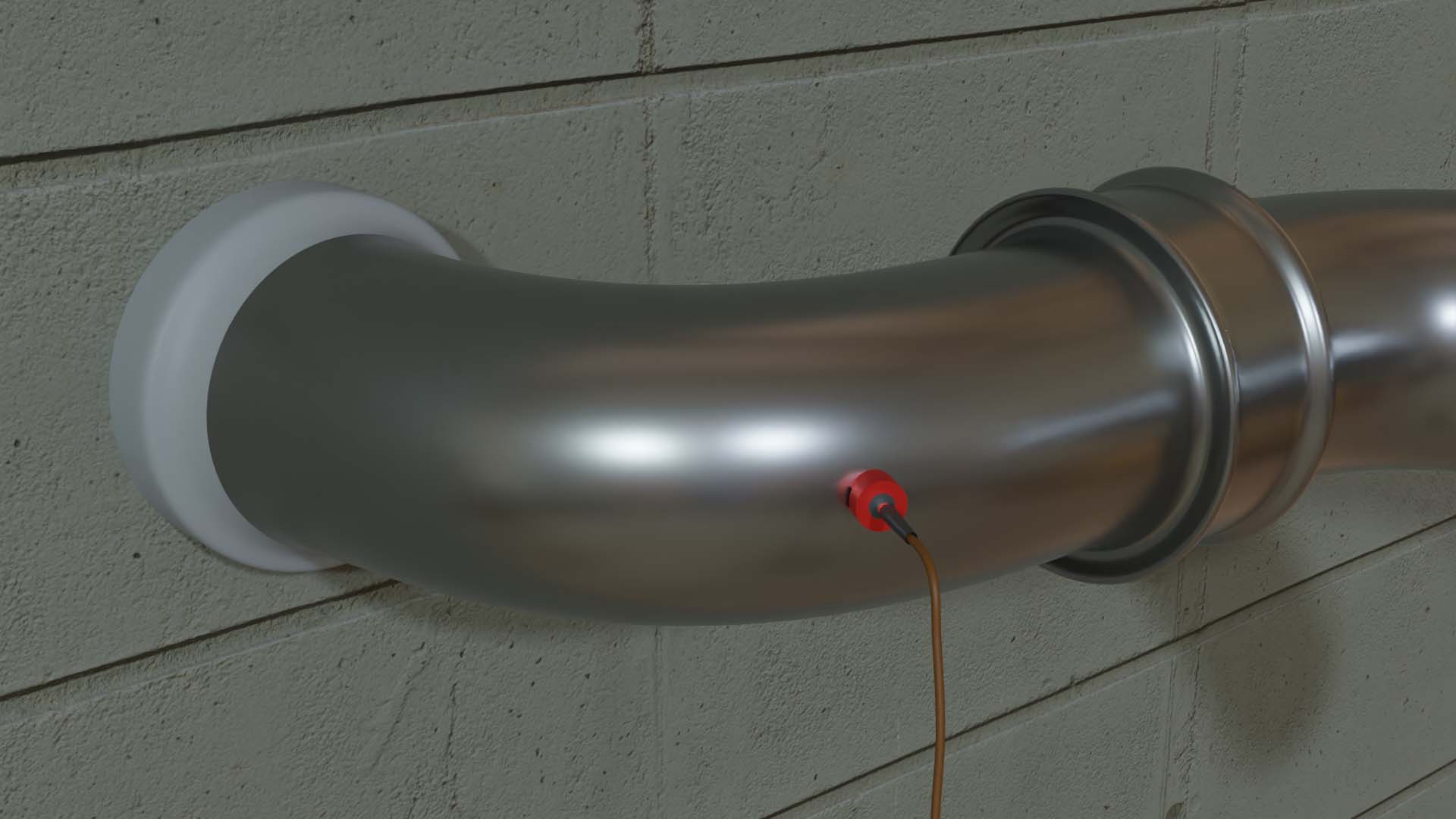

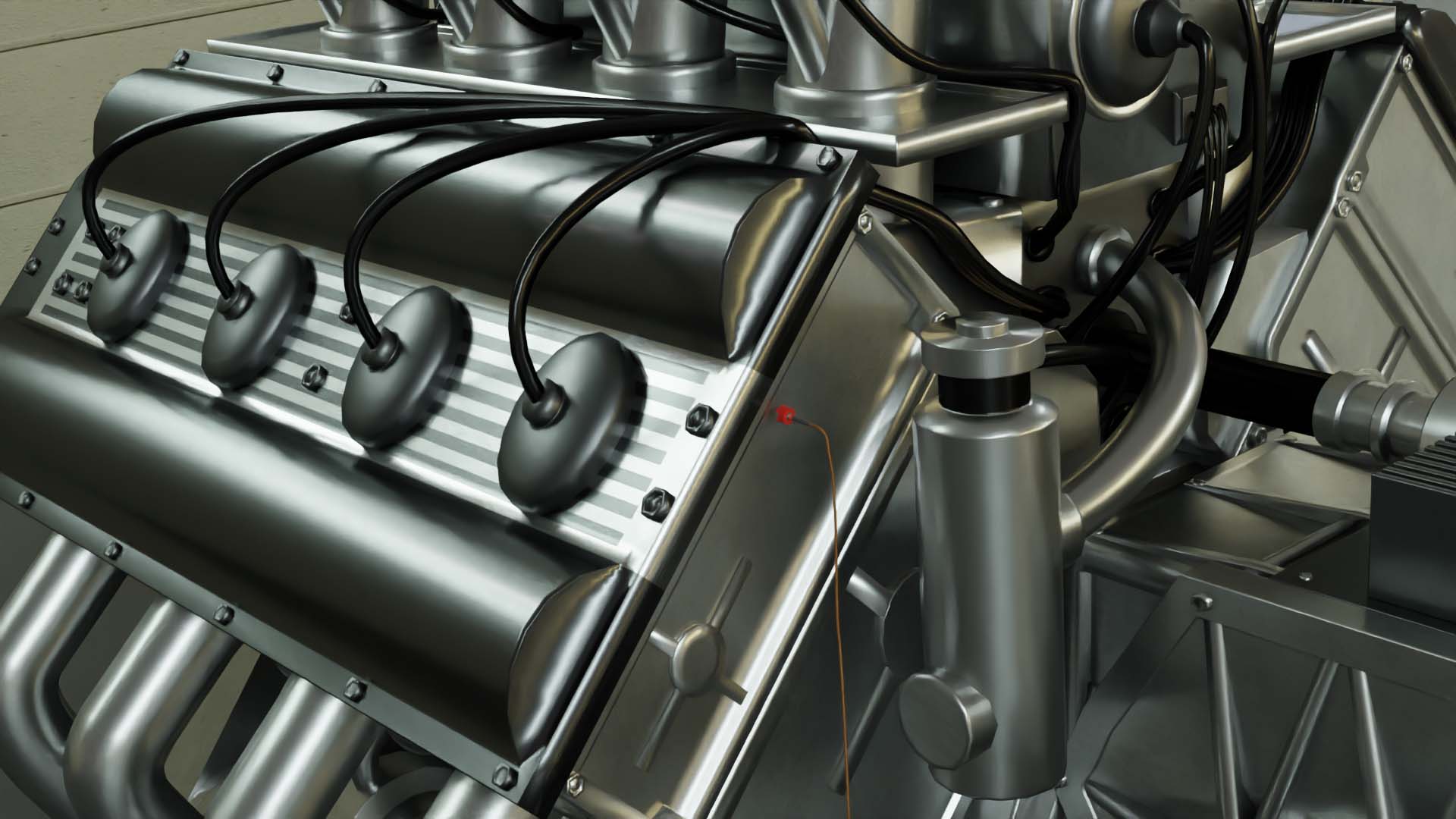

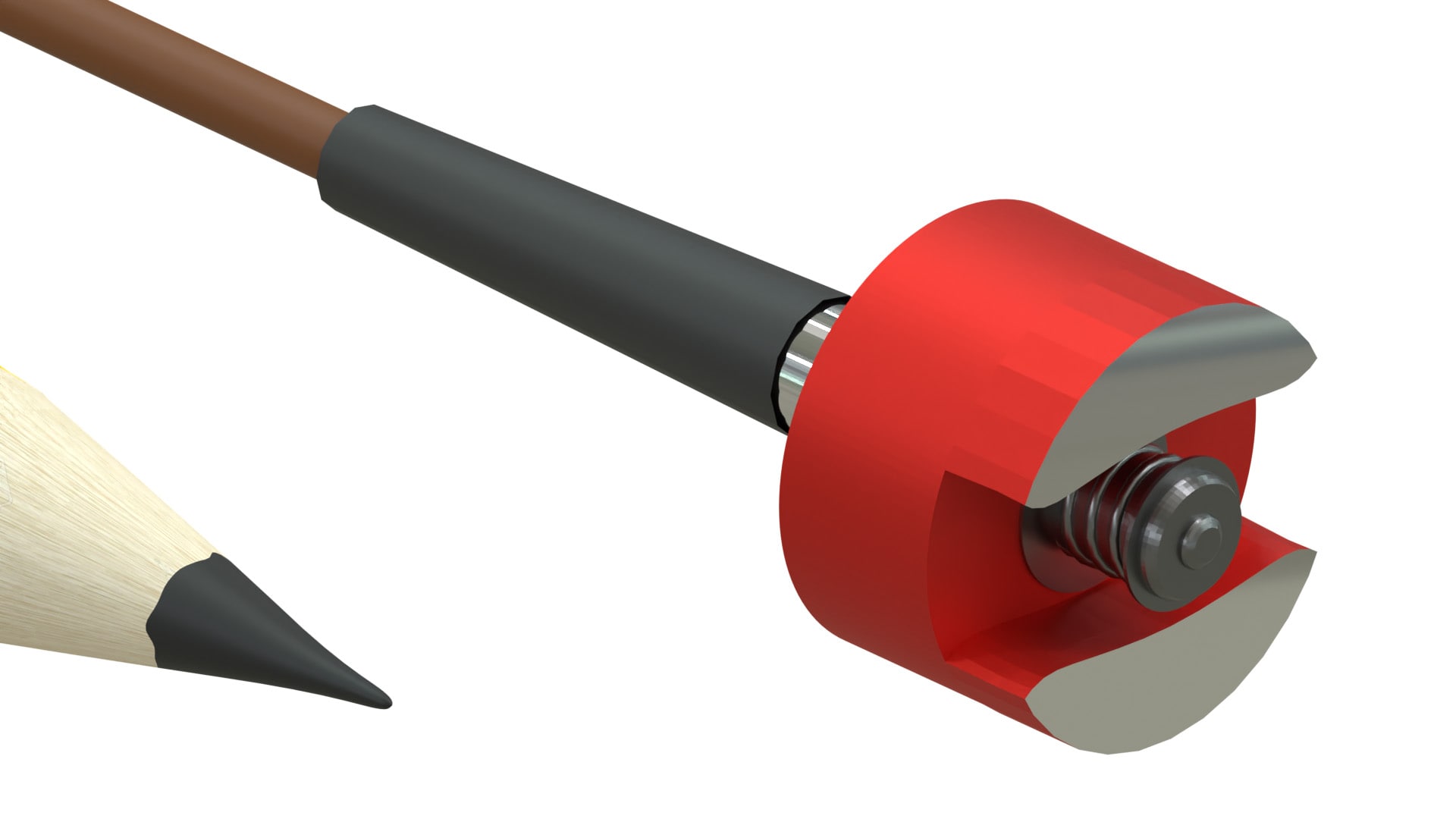

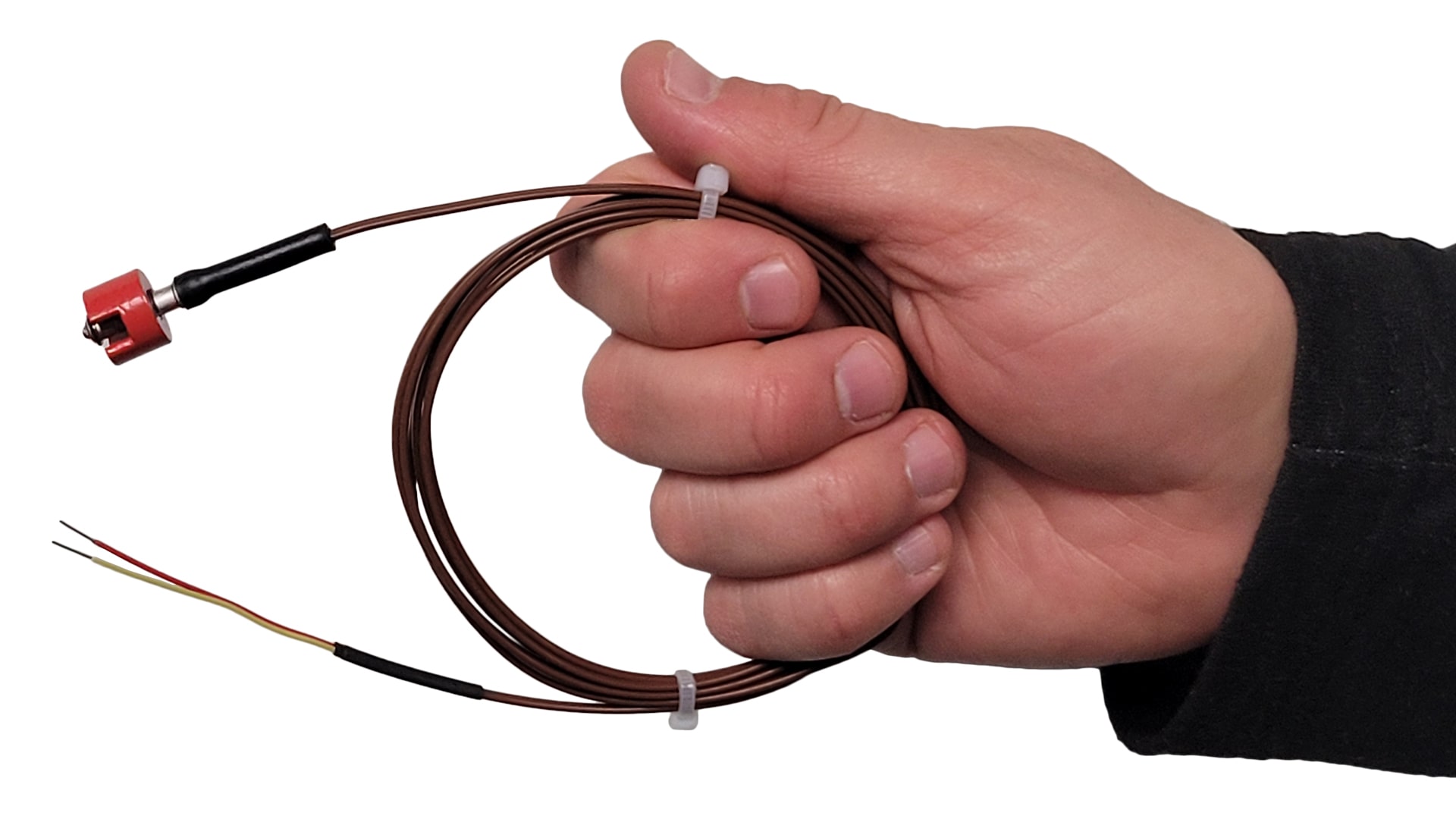

The MMTC Magnetic Mount Miniature Surface Thermocouple Sensor is specifically designed for applications in research and testing. It's compact 1/2" OD round magnet easily attaches to ferrous surfaces. The spring loaded sensing tip ensures a quick and accurate measurement of the surface temperature. The magnetic connection streamlines mounting, providing an easy and rapid solution for taking temporary or permanent temperature measurements.
The MMTC Surface Mount Bolt-Down or Cement-On Thermocouple Sensor is designed to deliver high performance temperature measurements, reliably and consistently. These temperature sensors are designed for Research and Development, test labs, manufacturing engineering and production environments. They can be customized for OEM applications as well.
Contact us for volume pricing. Custom configurations available.
Options:
TECHNICAL SPECIFICATIONS
|
Thermocouple type: |
Type K |
|
Junction: |
Ungrounded (Grounded available upon request) |
|
Operating Temperature Range |
-50 to 500°F (-45 to 260°C) |
|
Accuracy: |
Greater of +/-0.4% of reading or +/- 1.1°C (Special Limits of Error) |
|
Magnet Pull Force: |
1.2 lbs (5.3 N) |
|
IP Rating: |
IEC IP62 |
|
Conductors: |
24 AWG FEP insulated conductors, stranded |
|
Wire: |
6 foot (1.8 meter) lead wire |
|
Response Time: |
~35 seconds (ungrounded) |
