OVERVIEW
• Spring Loaded Linear Potentiometer
• Stroke lengths available from 10 to 100 mm (0.4 to to 4 inches)

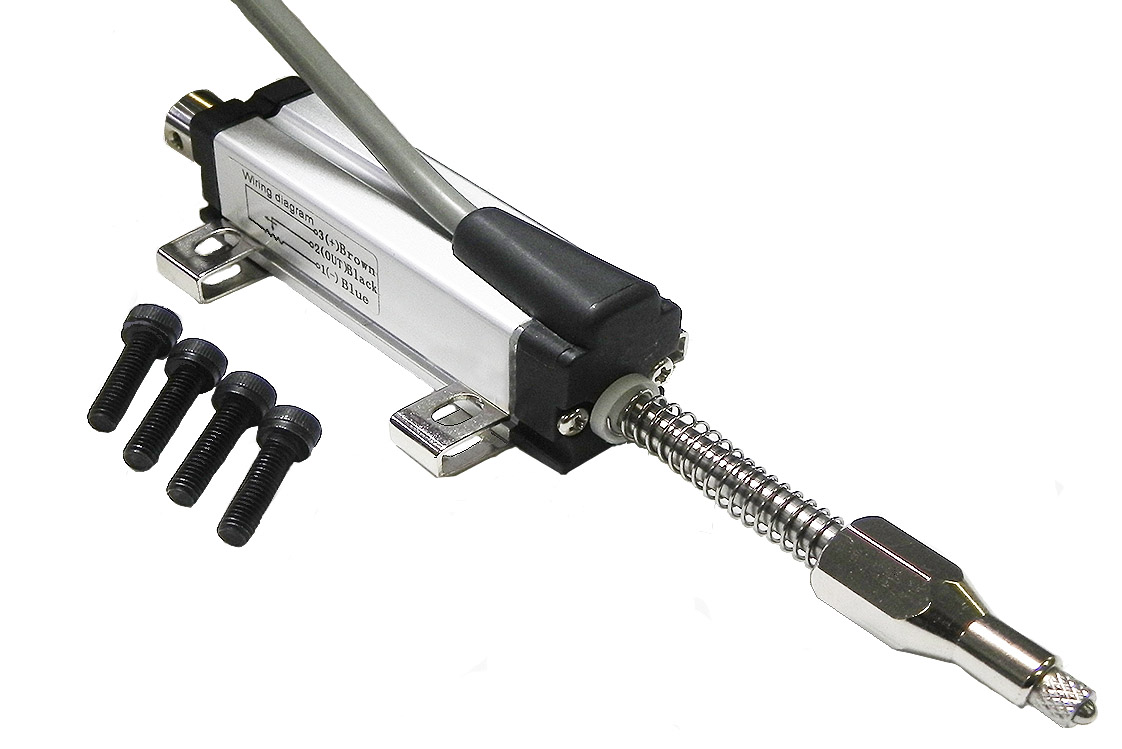

• Includes mounting brackets
• Environmental rating of IP61 (Dust tight, Water resistant)
• Compact Size, housing is only 18 mm x 18 mm

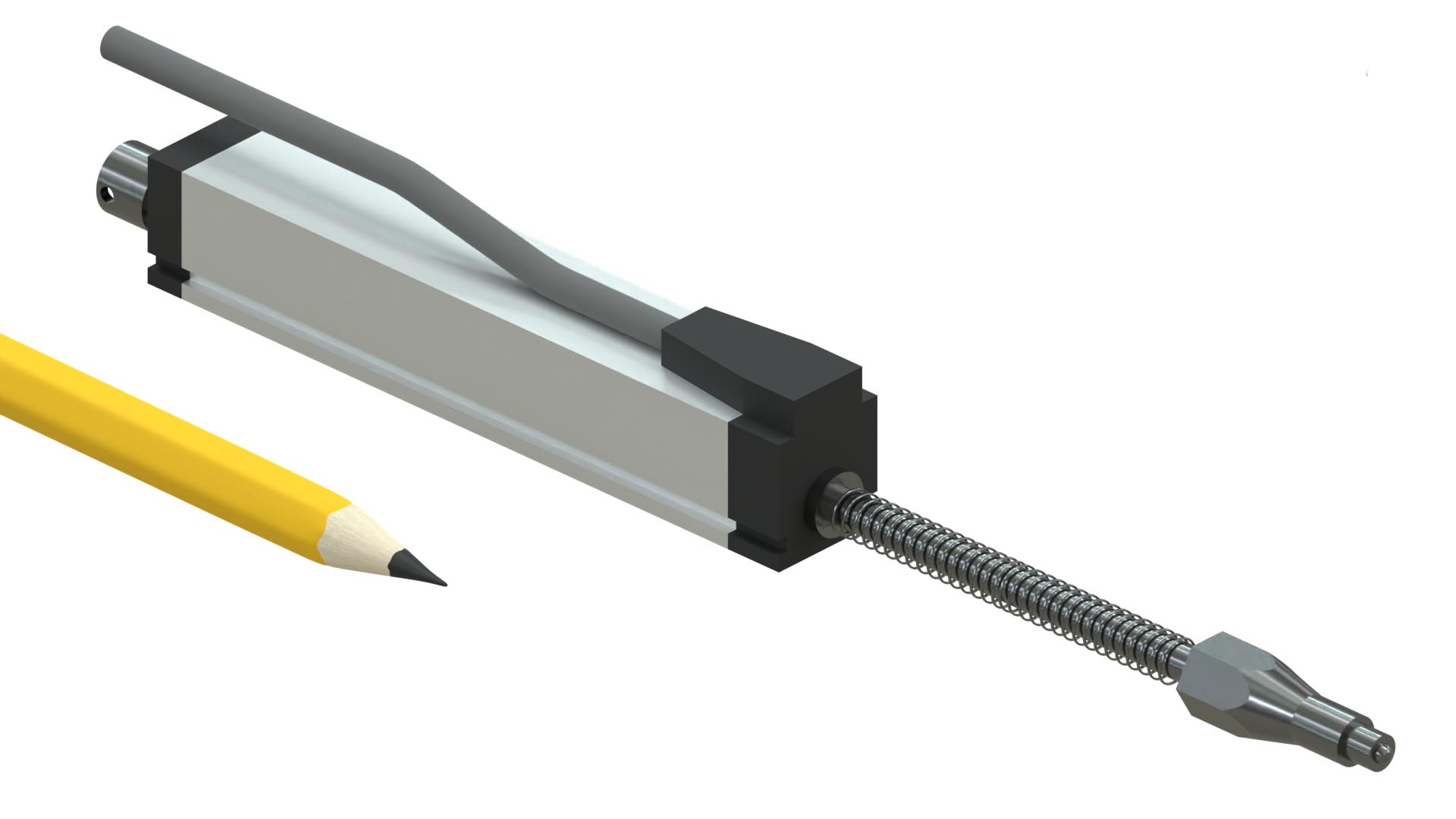

LPPS-SL series Spring Loaded Linear Potentiometer Travel Sensors are used to monitor and track the linear motion or position of a target. These compact sensors are ideal for use in gauging applications including laboratory, automotive, industrial, motion control, medical, and aerospace.
Resistive potentiometric element is made from conductive plastic. Output is ratiometric; from 0% to 100% of excitation voltage.
The LPPS-SL series sensor is made from industrial duty materials for resistance to dust, temperature, shock, and vibration.
Options:
TECHNICAL SPECIFICATIONS
Stroke Lengths: | 0.4" (10mm), 1" (25mm), 2" (50mm) 3" (75mm), 4" (100mm) |
Mechanical Stroke Length: | Stroke Length + 0.12" (3 mm) |
Non-Linearity (BFSL method): | </= +/- 2.5% of full stroke |
Resolution: | Infinite |
Repeatability: | 0.0004" (0.01 mm) |
Element Type: | Conductive plastic |
Output: | 0 to 100% of excitation voltage |
Element Resistance: | 1.0, 3.0, and 5.0K ohm (+/- 20%) |
Maximum Excitation Voltage: | 36 VDC |
Current Draw: | ~10 mA (nominal) |

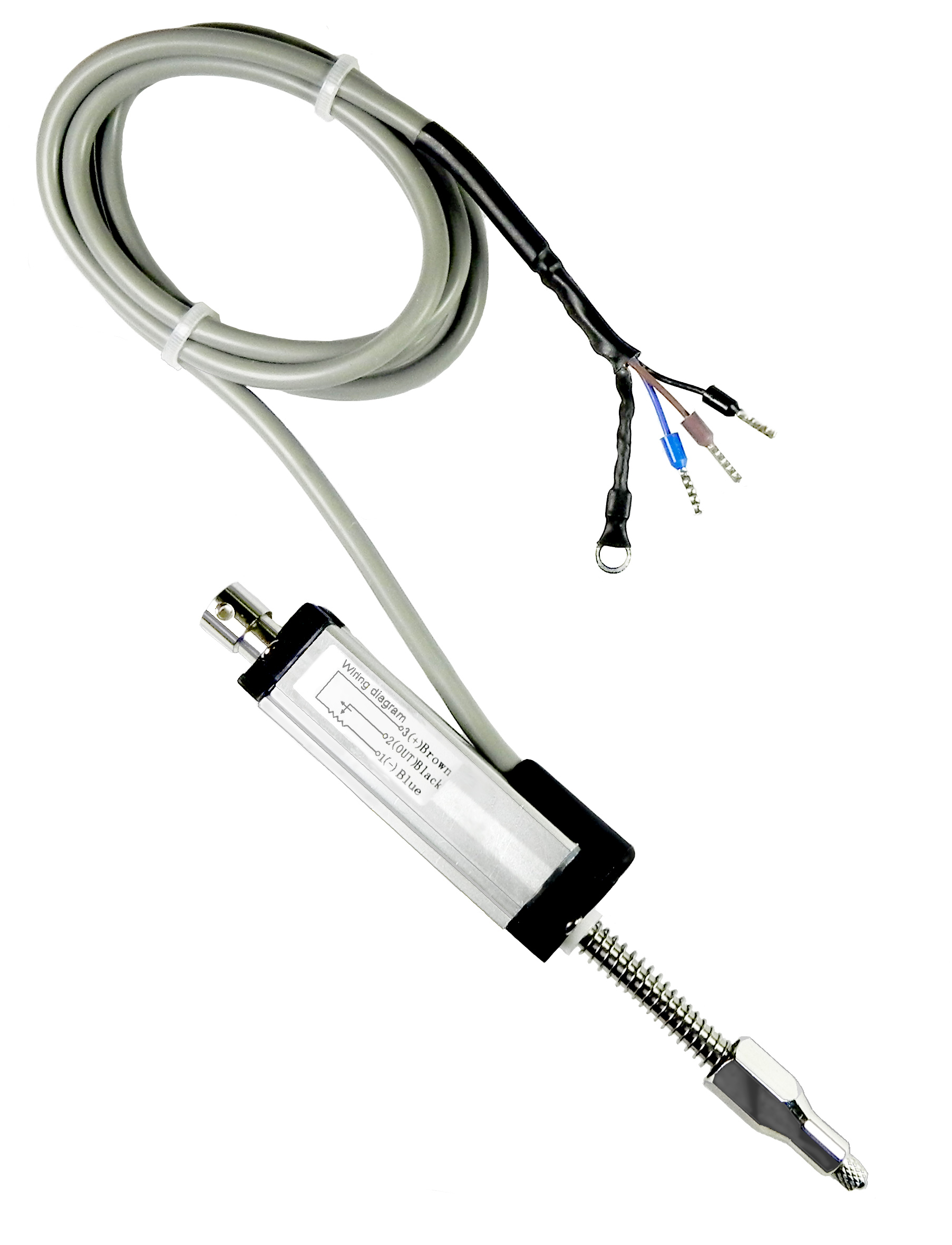

Output Cable: | 3 conductor, 24 AWG, braided shield, PVC jacket, 3 foot long |
Operating Temperature Range: | -40 to +203°F (-40 to +95°C) |
Thermal Coefficient of Sensitivity: | <0.03%/°C nominal |
Humidity: | 95% Max. RH (non-condensing) |
Liquid & Dust Protection: | IP61 |
Shock Rating: | 50g (single hit), IEC68-2-29:1968 |
Vibration Rating: | 20g, IEC68-2-6:1982 |
Housing Dimension (O.D): | 0.70" x 0.70" (18 mm x 18 mm) |
