LPPS-MSL Series Mini Linear Potentiometer Position Sensor Spring Loaded

OVERVIEW

• Spring Loaded Linear Potentiometer
• Stroke lengths available from 5 to 100 mm (0.2 to to 4 inches)
• Environmental rating of IP61 (Dust tight, Water resistant)
• Compact Size, housing is only 16 mm diameter

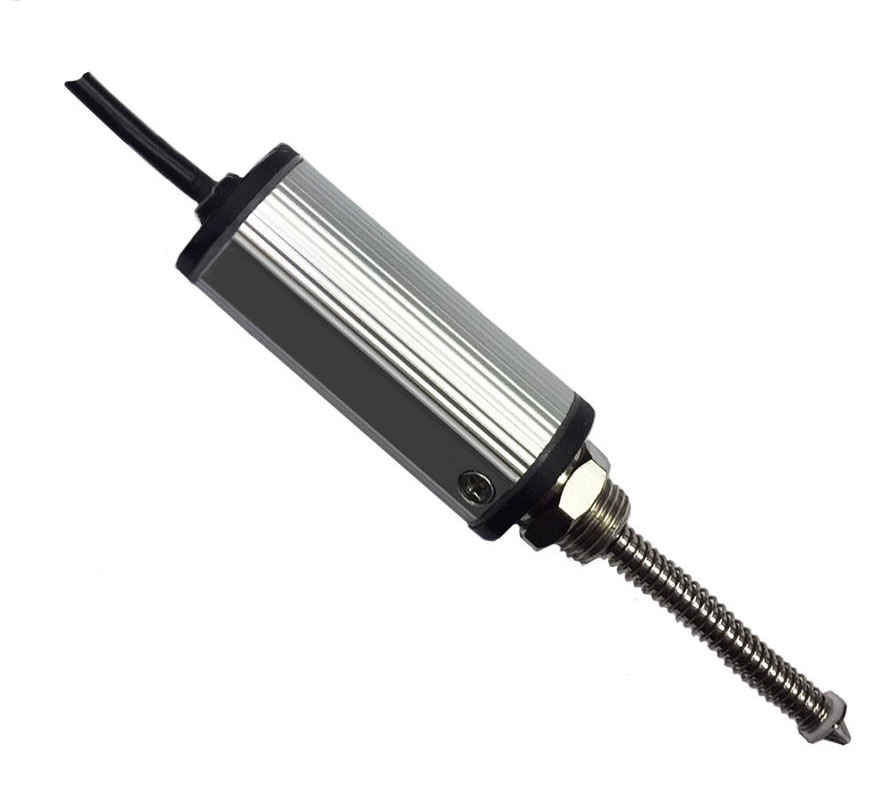

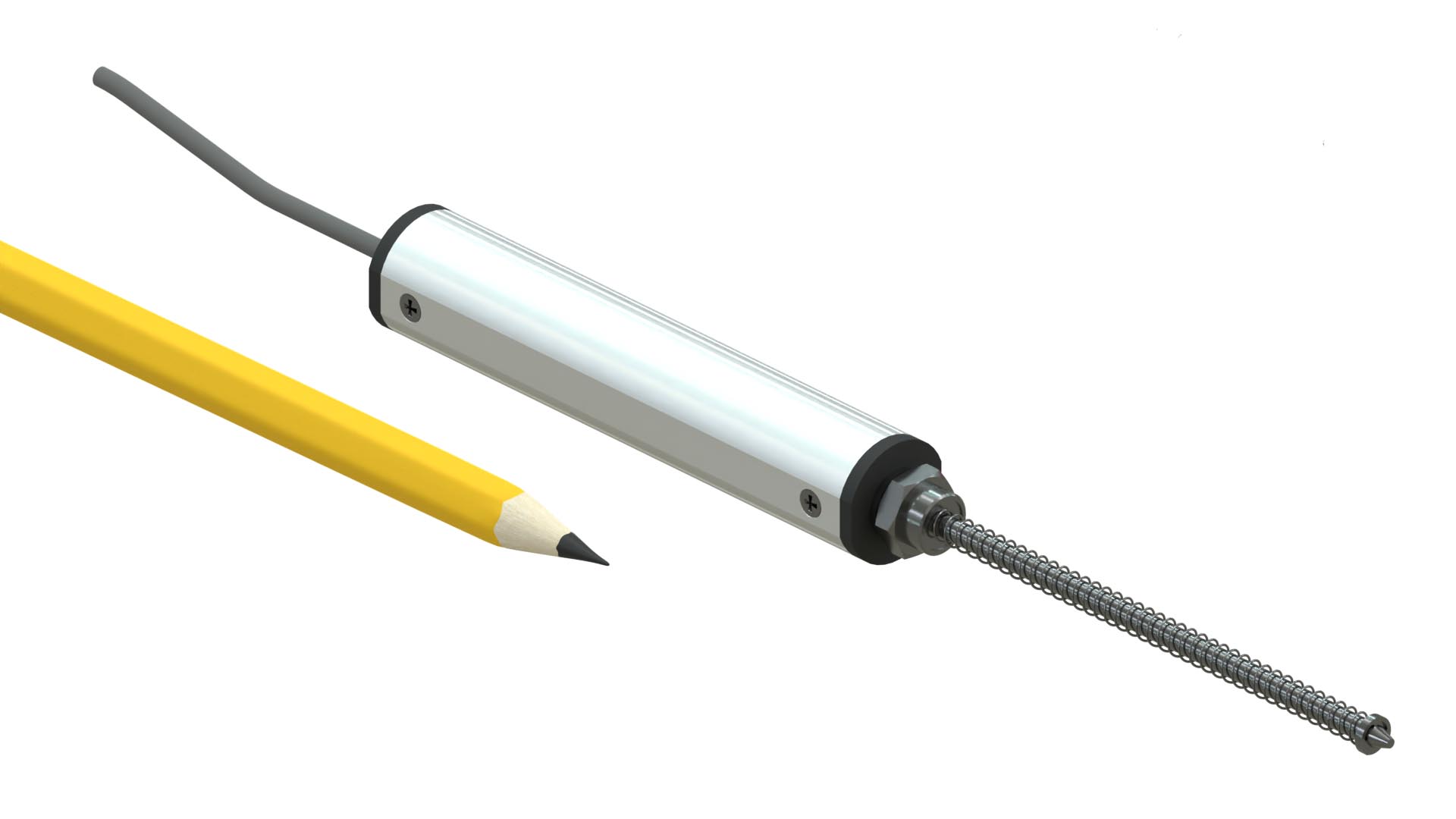

LPPS-MSL series Spring Loaded Linear Potentiometer Travel Sensors are used to monitor and track the linear motion or position of a target.  The captive and guided spring loaded shaft incorporates an external helical compression spring to maintain constant contact with the part under measurement.  These compact sized sensors are only 16mm OD making them ideal for installations with limited space.  LPPS-MSL series sensors are used in a vast array of gauging applications including laboratory, automotive, industrial, motion control, medical, and aerospace.

Resistive potentiometric element is made from conductive plastic. Output is ratiometric; from 0% to 100% of excitation voltage.

The LPPS-MSL series sensor is made from industrial duty materials for resistance to dust, temperature, shock, and vibration.



Options:

LPPS Measuring Range
SKU
LPPS-MSL-005
Availability
In stock
0
Out of Stock
0
Discontinued
Off
Price
$240.00
Add to Cart

TECHNICAL SPECIFICATIONS

Stroke Lengths:0.2" (5mm), 0.6" (15mm), 1" (25mm), 2" (50mm) 3" (75mm), 4" (100mm)
Mechanical Stroke Length:Stroke Length + 0.16" (6 mm)
Non-Linearity (BFSL method):</= +/- 2.5% of full stroke
Resolution:Infinite
Repeatability:0.0004" (0.01 mm)
Element Type:Conductive plastic
Output:0 to 100% of excitation voltage
Element Resistance:2.0, 3.0, and 5.0K ohm (+/- 20%)
Maximum Excitation Voltage:24 and 36 VDC
Current Draw:~10 mA (nominal)
Output Cable:3 conductor with drain, 22 AWG, PVC jacket, 1 foot long
Operating Temperature Range:-40 to +195°F (-40 to +95°C)
Thermal Coefficient of Sensitivity:<0.03%/°C nominal
Humidity:95% Max. RH (non-condensing)
Liquid & Dust Protection:IP61
Shock Rating:50g (single hit), IEC68-2-29:1968
Vibration Rating:20g, IEC68-2-6:1982
Housing Dimension:0.63" (16 mm) outside diameter
