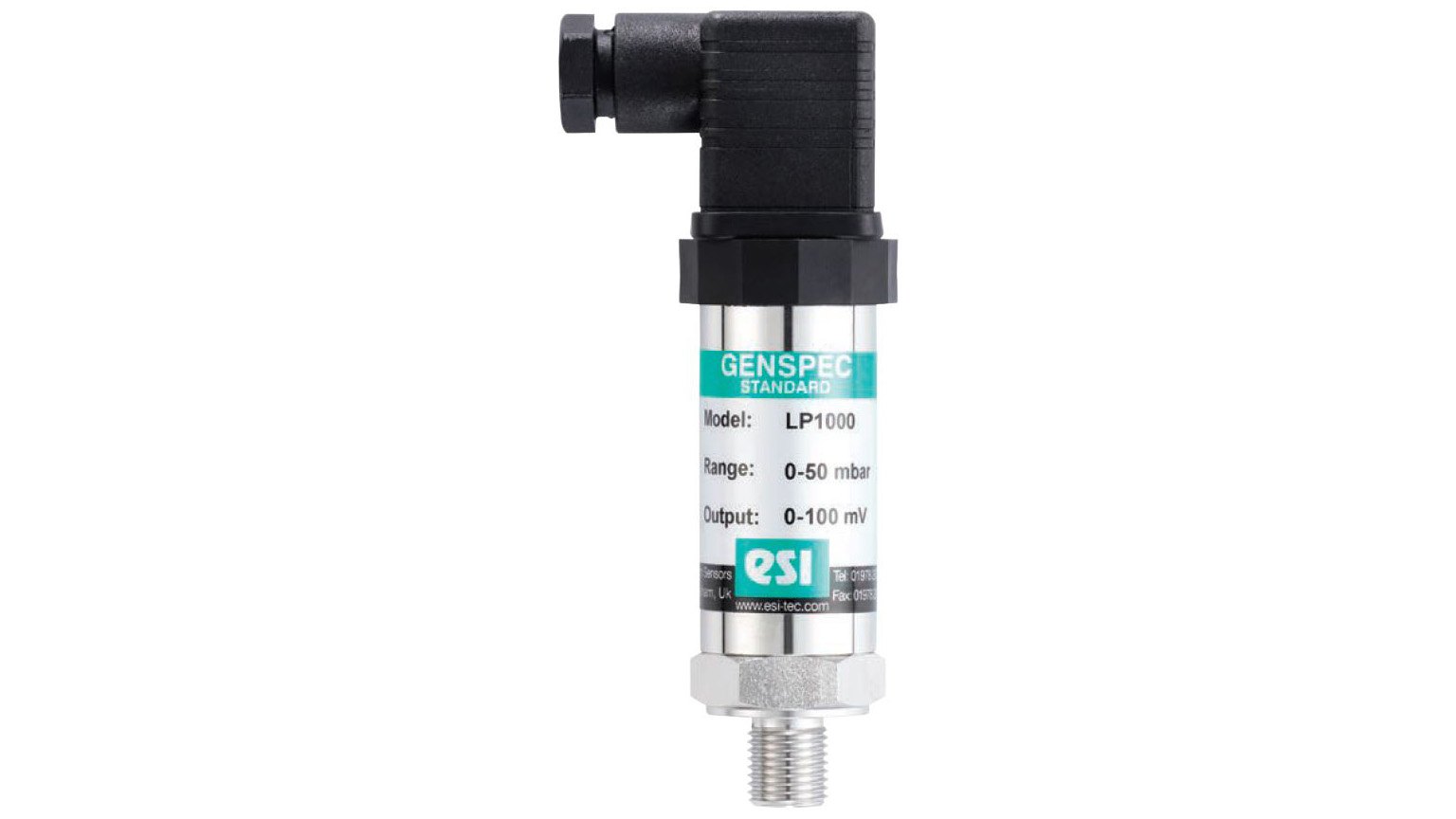

LP1000 Low Pressure Transducer

OVERVIEW

• Piezoresistive sensor technology
• Pressure ranges: 0-50mbar to 0-1000mbar
• Output options: 0-100 mV, 0-5 VDC, 0-10 VDC, or 4-20 mA
• Accuracy 0.5% NLHR
• Robust stainless steel construction
• Wide operating temperature range
• Zero span & adjustment


LP1000 series now extends the pressure sensor technology into very low-pressure applications, with operating ranges down to 0-50mbar while maintaining high performance. The advanced sensor design provides very low hysteresis and excellent long-term stability not normally achievable when measuring very low pressure.

The LP1000 offers a low cost solution for accurate measurement of very low pressures and is specifically designed for use in media such as air, non-corrosive gases and various liquds compatible with silicon. The stainless steel housing, fluorosilicone seals and silicon sensing element enables the product to maintain accurate performance and provide extremely good durability.

Available in pressure ranges from 0-50mbar to 0-1000mbar and with electrical outputs of 0-100mV, 0-5VDC, 0-10VDC, and 4-20mA.

Application include laboratory and test air and gas pressure monitoring, leak detection, low pressure liquid and hydrostatic measurements.


1
Out of Stock
0
Discontinued
Off
REQUEST PRICE

TECHNICAL SPECIFICATIONS

Sensor Technology:

Silicon-on-sapphire (SOS)

Output Signal:

0-100mV [nominal] (4 wire non-amplified), Zero offset:±1mV/V, Span tolerance: ±30%FSO, 0-5 VDC, 0-10 Vdc (4 wire amplified), Zero Offset and Span Setting ±0.5%FSO4-20mA (2 wire amplified), Zero Offset and Span Setting ±0.08mA

Zero offset and span tolerance:

0.08mA, ±5%FS adjustment with easy access trimming, potentiometers on amplified version only

Pressure Reference:

Gauge

Supply voltage:

Measured across supply terminals on connector plug, 10 VDC for 0-100mV version, 13-30VDC for 0-5 VDC and 0-10 VDC versions, 10-36 VDC for 4-20 mA version

Protection of supply voltage:

Protected against supply voltage reversal up to 50 VDC

Load driving capability (4-20mA version only):

Calculate maximum load Rs=(Ub-13V)/20mA, E.g. with supply voltage load of 36 VDC, maximum load is 1150 ohms

Accuracy (Non linearity, hysteresis, & repeatability):

±0.50% FS typical max. Best fit straight line

Pressure media:

All fluids compatible with 316 stainless steel, fluorosilicone and silicon

Operating temperature range:

Ambient/Media: 20°C to +85°, Storage: +5°C to +40°C (41°F to +104°F)

Insulation resistance:

100Mohm @50 VDC all electrical connection to case

Pressure connection:

1/4" NPT male, 1/4" BSP male, 1/2" BSP male

Electrical connection:

Mating socket with screw terminal connections to DIN 43650 rated IP65
