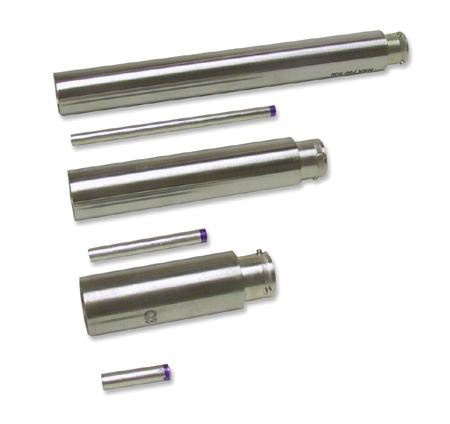

TE Connectivity Macro Sensors’ HSA 750 Series of 3/4 inch (19 mm) diameter AC-operated LVDTs is designed for a wide range of position measurement applications. These are rugged hermetically sealed sensors, constructed entirely of stainless steel, and intended for general industrial use. The coil windings are sealed against hostile environments to IEC standard IP-68 and electrical termination is through a sealed radial connector located near one end. The mating connector plug is supplied with the unit.
Available in ranges of ±0.050 inch (±1.25 mm) to ±10.0 inches (±250 mm), HSA 750 Series sensors feature the high resolution, excellent repeatability, and low hysteresis associated with LVDT technology, as well as the highest sensitivity consistent with good linearity. The maximum linearity error for any of these sensors is ±0.25% of full range output using a statistically best-fit straight line derived by the least squares method.
Features
Axial connector, mating plug included
Ranges of ±1 mm to ±250.0 mm
Environmentally sealed to IEC IP-68
Non-linearity less than ±0.25% of FRO
Part Numbers
HSA-750-050
HSA-750-125
HSA-750-250
HSA-750-500
HSA-750-1000
HSA-750-2000
HSA-750-3000
HSA-750-4000
HSA-750-5000
HSA-750-7500
HSA-750-10000
