OVERVIEW
What's in stock...
(032310060000-M) GHSD-750-050 Qty: 4 pcs
HGSI is a factory authorized TE Connectivity Macro Sensors distributor.
Have Pricing or Technical questions? Contact us today.
Complete the contact form, call us at 248-636-1515, or email us at sales@hgsind.com

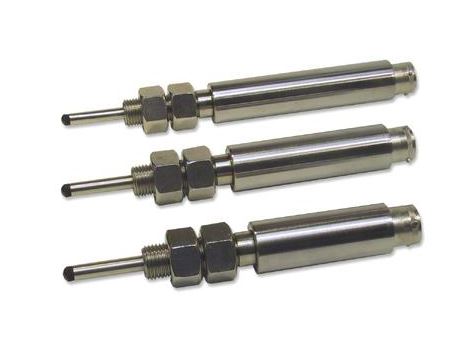

The TE Connectivity Macro Sensors GHSD 750 Series of 3/4 inch diameter spring-loaded DC-LVDTs are designed for a wide range of position measurement and dimensional gaging applications. These rugged hermetically sealed sensors are constructed entirely of stainless steel and intended for general industrial use. The coil windings are sealed against hostile environments to IEC standard IP-68. Electrical termination is through a sealed axial connector; the mating connector plug is supplied with a unit.
The sensor consists of a spring loaded shaft running in a precision sleeve bearing and connected to the core of an LVDT. The use of a precision sleeve bearing results in measurement repeatability of 0.000025 inches (0.6 µm) or better. The probe shaft is fully extended by a spring exerting a nominal force of 6 to 20 ounces depending upon total range. The contact tip supplied is an AGD standard number 9 made from chrome plated hardened tool steel. It is fully interchangeable with other AGD contact tips.
Built-in electronics result in position sensors that operate from a DC input and generate a precalibrated DC output. The output from the GHSD 750 Series is designed to operate with many PLCs, digital indicators, A/D converters, computer-based data processors, and QC data collection systems.
Available in ranges of ±0.050 inch (±1.25 mm) to ±2.00 inches (±50.0 mm), the maximum linearity error for a GHSD 750 Series sensor is ±0.25% of full range output using a statistically best-fit straight line derived by the least squares method.
Part Numbers
GHSD-750-020
GHSD-750-050
GHSD-750-125
GHSD-750-250
GHSD-750-500
GHSD-750-1000
GHSD-750-2000
