OVERVIEW
• Frequency Input: 0-50 mV to ±10 VDC, 0-1 mA to 4-20 mA
• DC Output: 0-1 V to 0-10 V, ±5 V, ±10 V, 0-2 mA to 4-20 mA
• Field-Configurable by User

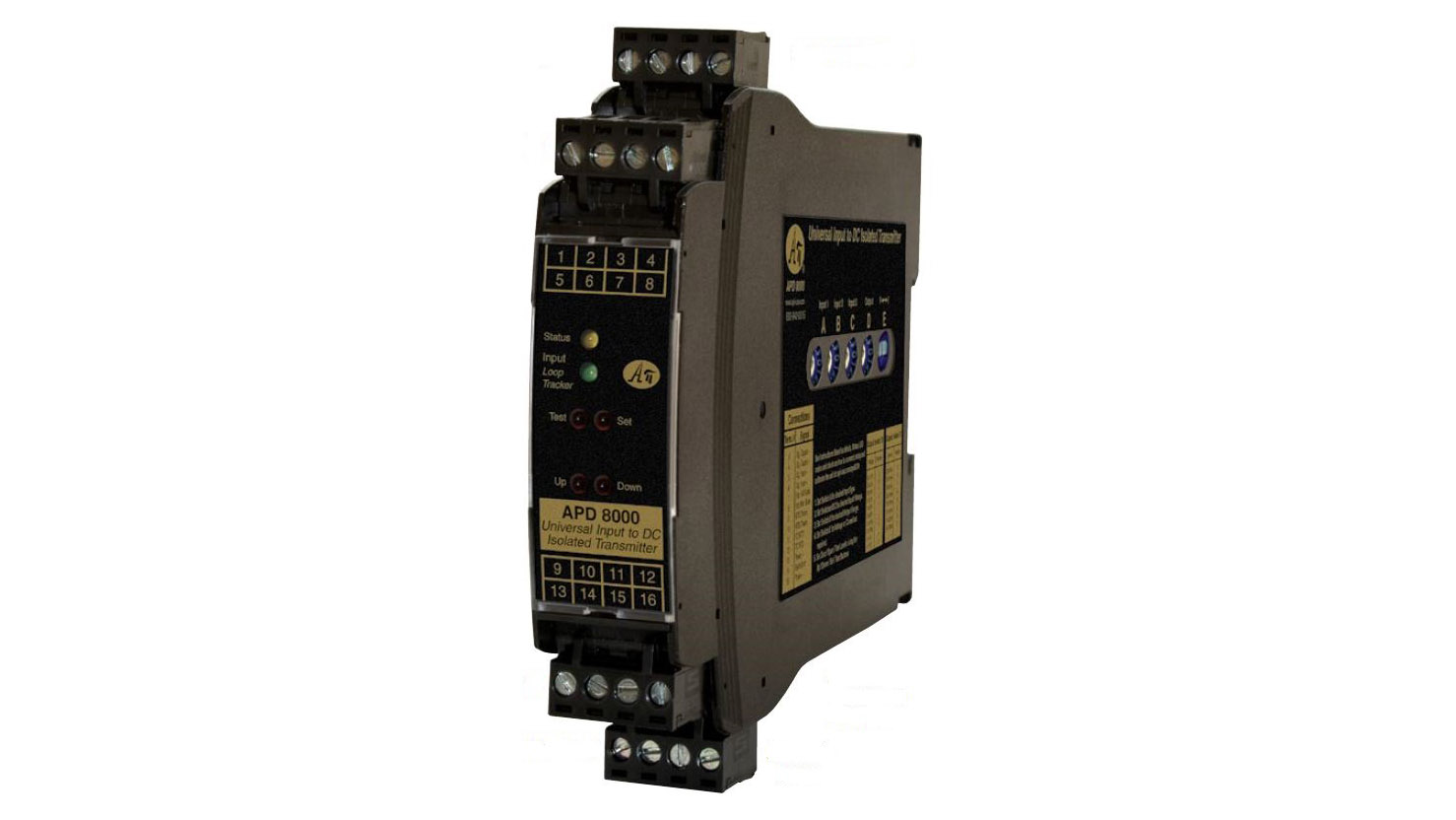

The APD 8000 accepts a DC, potentiometer, thermocouple, RTD or thermistor input and provides an optically isolated and linearized DC voltage or current output. The input is sampled, digitally converted (and linearized for temperature sensors), and then passed through an optocoupler to the output stage.
Full 3 way isolation (input, output, power) make this module useful for ground loop elimination, common mode signal rejection, and noise pickup reduction.
The input type and range, and output type and range are field configurable. This provides a versatile solution that works with all commonly available sensors.
Options:
TECHNICAL SPECIFICATIONS
Features:
- One Model Covers All Common Sensors
- Easy Setup—No Computer or Software Needed
- Zero and Span Output Calibration Buttons
- Full 1200 V Isolation
- Input LoopTracker® LED, Output Test Function
- Built-In Loop Power Supply for Sink/Source Output
Applications:
- Convert/Isolate DC Sensors for PLC Input, Control
and/or Validation - Interface DC Sensors with Panel Meters, PLCs,
Recorders, Data Acq., DCS, & SCADA Systems
