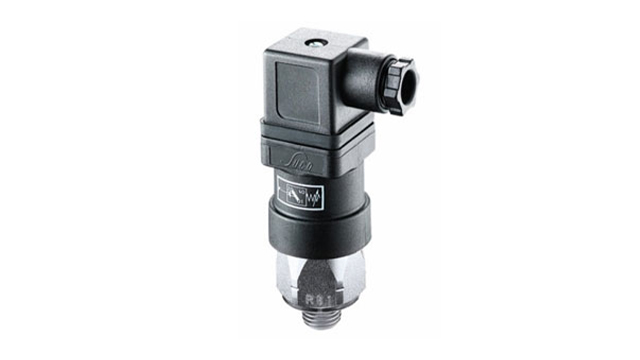

0184 Series Suco Diaphragm Pressure Switch

OVERVIEW

• Made of zinc-plated steel (CrVI-free, other housing materials available as option)
• Socket device similar to DIN EN 175301 (DIN 43650)
• Snap action with silver contacts
• Overpressure safety up to 1,450 / 4,350 psi (100 / 300 bar)
• Differential adjustable at factory
• Snap-Action Micro Switch with Silver Contacts

The 0184 series is a compact pressure switch with reliable snap-action micro switch for harsh mobile hydraulic or industrial applications. Very good price/quality ratio. The included connector makes wiring fast and easy. A wide-range of media connections and seal material are available.
HGSI is a factory authorized distributor of Suco Technologies pressure switches.


Options:

SKU
0184-XXXXX-X-XXX
Availability
Stock to 5 weeks
1
Price
$999.00
Add to Cart

TECHNICAL SPECIFICATIONS

Field-adjustable pressure range:

 4.35…1,450 psi

Differential:

Set at Factory: 10…30%

Overpressure safety:

Up to 1,450/4,350 psi

Body:

Zinc-plated steel body, HEX 27mm (1.06″)

Power:

Max 250V

Current:

4 A Resistive

Seal Material:

NBR (Buna N), EPDM, FKM (Viton®), HNBR



DOCUMENTS & DOWNLOADS

0184 Series Suco Pressure Switch Data Sheet242.12 KB
0184 Series Suco Pressure Switch User Manual249.26 KB

VIDEOS

How to Identify a Suco Series 01 Pressure Switch
Technical Video Guide
How to Identify a Suco Series 01 Pressure Switch
How to Adjust the Setpoint of a Suco Pressure Switch
Technical Video Guide
How to Adjust the Setpoint of a Suco Pressure Switch

PRODUCT NUMBERS

0184-45703-1-003   0184-45703-2-003   0184-45703-3-003   0184-45703-9-003   0184-45803-1-042   0184-45803-2-042   0184-45803-3-042   0184-45803-9-042
0184-45701-1-001   0184-45701-2-001   0184-45701-3-001   0184-45701-9-001   0184-45801-1-040   0184-45801-2-040   0184-45801-3-040   0184-45801-9-040
0184-45702-1-002   0184-45702-2-002   0184-45702-3-002   0184-45702-9-002   0184-45802-1-041   0184-45802-2-041   0184-45802-3-041   0184-45802-9-041
0184-45704-1-318   0184-45704-2-318   0184-45704-3-318   0184-45704-9-318   0184-45804-1-343   0184-45804-2-343   0184-45804-3-343   0184-45804-9-343
0184-45709-1-314   0184-45709-2-314   0184-45709-3-314   0184-45709-9-314   0184-45809-1-340   0184-45809-2-340   0184-45809-3-340   0184-45809-9-340
0184-45720-1-301   0184-45720-2-301   0184-45720-3-301   0184-45720-9-301   0184-45820-1-341   0184-45820-2-341   0184-45820-3-341   0184-45820-9-341
0184-45721-1-302   0184-45721-2-302   0184-45721-3-302   0184-45721-9-302   0184-45821-1-342   0184-45821-2-342   0184-45821-3-342   0184-45821-9-342

0184-45903-1-009   0184-45903-2-009   0184-45903-3-009   0184-45903-9-009   0184-46103-1-012   0184-46103-2-012   0184-46103-3-012   0184-46103-9-012
0184-45901-1-007   0184-45901-2-007   0184-45901-3-007   0184-45901-9-007   0184-46101-1-010   0184-46101-2-010   0184-46101-3-010   0184-46101-9-010
0184-45902-1-008   0184-45902-2-008   0184-45902-3-008   0184-45902-9-008   0184-46102-1-011   0184-46102-2-011   0184-46102-3-011   0184-46102-9-011
0184-45901-1-320   0184-45901-2-320   0184-45901-3-320   0184-45901-9-320   0184-46104-1-321   0184-46104-2-321   0184-46104-3-321   0184-46104-9-321
0184-45909-1-311   0184-45909-2-311   0184-45909-3-311   0184-45909-9-311   0184-46109-1-312   0184-46109-2-312   0184-46109-3-312   0184-46109-9-312
0184-45920-1-305   0184-45920-2-305   0184-45920-3-305   0184-45920-9-305   0184-46120-1-307   0184-46120-2-307   0184-46120-3-307   0184-46120-9-307
0184-45921-1-306   0184-45921-2-306   0184-45921-3-306   0184-45921-9-306   0184-46121-1-308   0184-46121-2-308   0184-46121-3-308   0184-46121-9-308
