PMD1XT Single Channel Mini Digital Panel Meter - Universal Input - with Analog Output

OVERVIEW

• Accepts thermocouple, RTD, Ω, mV, Volt, or mA input (user selectable)
• Max temperature "Peak hold" display capture capability
• High set-point alarm LED warning with internal relay contact
• 12 or 24 VDC powered
• Analog retransmission output (4 to 20 mA or 0 to 5 VDC)

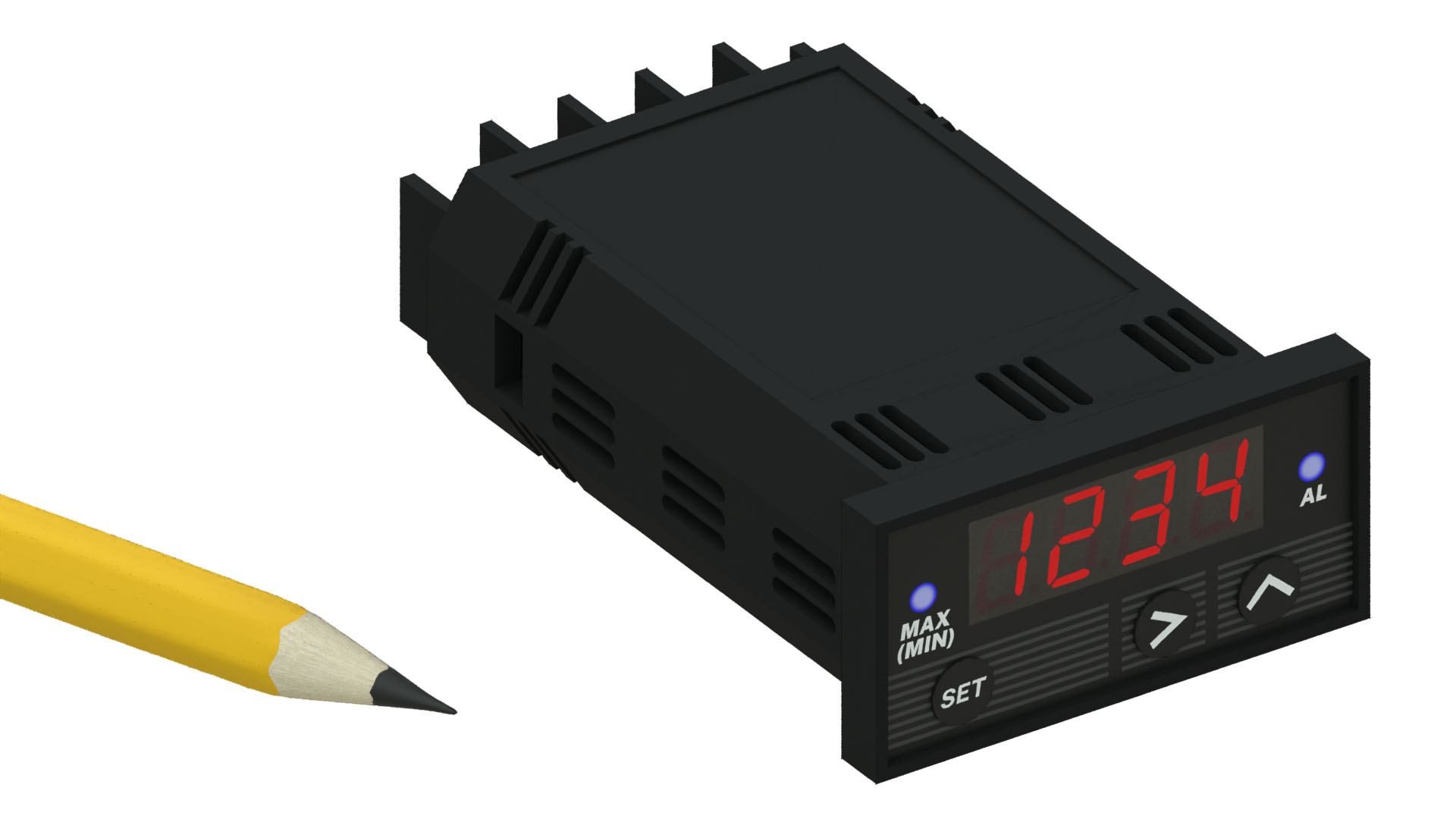

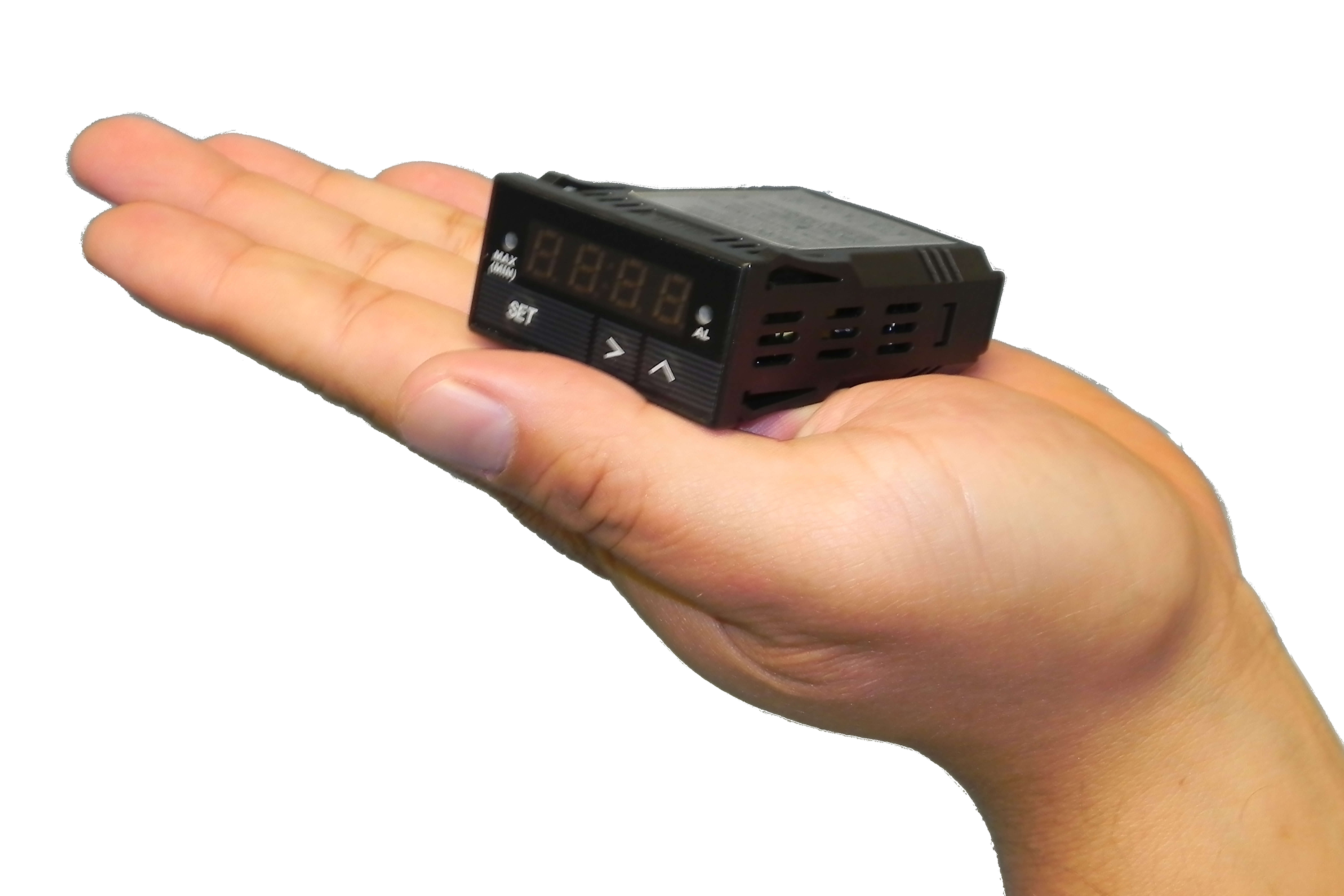

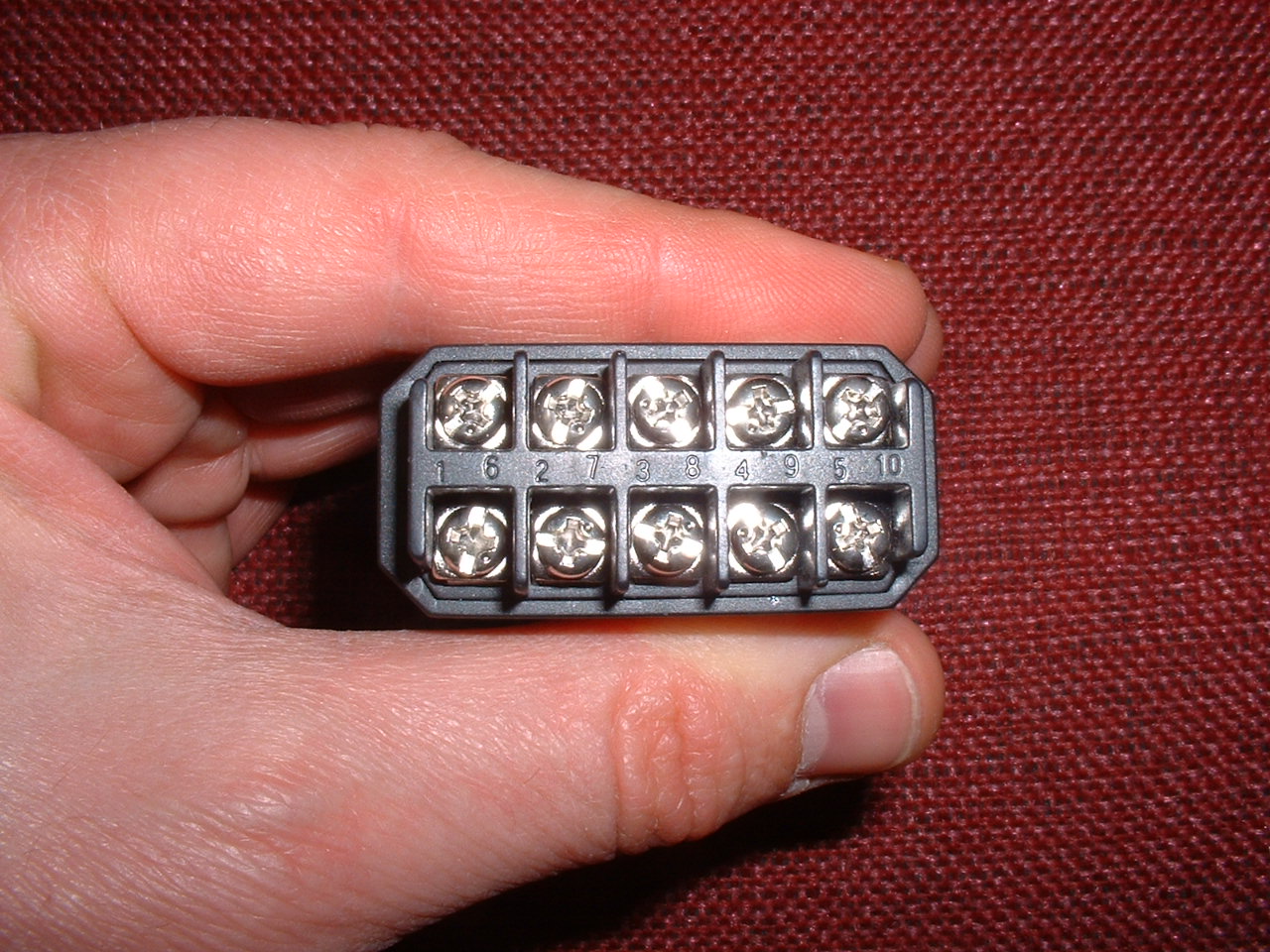

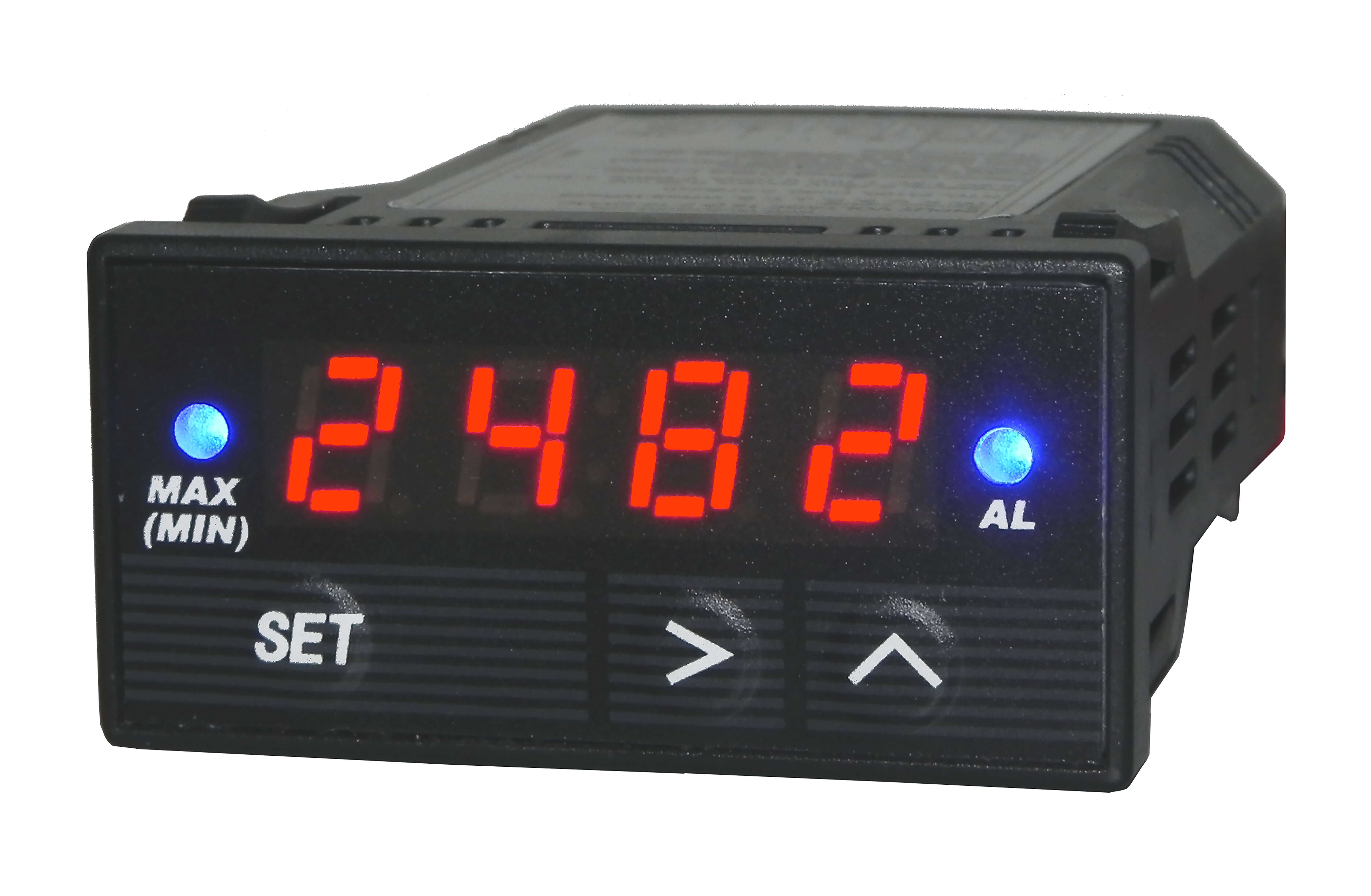

The PMD-1XT Series gauge has advanced operations including max temperature recall, high temperature alarm, and analog retransmitting output. The gauge’s high resolution digital microprocessor ensures accurate temperature measurement. The PMD-1XT Series gauge features a bright four digit LCD display with selectable decimal point position that is easy to read, even in direct sunlight and an industrial grade screw terminal strip allows for quick and easy connection of power and signal wires. Setup and programming of your PMD-1XT gauge is simple using the three front panel push buttons. The gauge includes a fast response feedback alarm that gives a visual warning alert, plus an internal relay is triggered that can be used to control an external device, such as a fan or buzzer. You can easily access the max temperature recall feature to display the peak temperature stored in memory. All of our gauges are manufactured from high quality materials for optimum performance in your demanding application.


Input Table (User Selectable)

Input Type OptionsRange Settings
Thermocouple
RTD
Resistance
mV (DC)
Volts (DC)
mA (DC)
K, T, J, R, S, E
PT100, Cu50
0-375 ohms
0-30 mV
0-5V, 1-5V, 0-10V
0-10 mA, 0-20 mA, 4-20 mA



Options:

Add a Protective Aluminum Enclosure Housing?
Add an Audible Alarm Buzzer?
PMD1XT Power Input
PMD1XT LED Display Color
SKU
PMD1XT-RD-024-A
Availability
In Stock
0
Out of Stock
0
Discontinued
Off
Price
$89.00
Add to Cart

TECHNICAL SPECIFICATIONS

Number of Inputs:1
Display Range:-1999 to +9999
LED Display:Red, 4-digit, 0.275 inch (7 mm high), 0.5 second update rate
Microprocessor Sampling Rate:4 samples/second
Microprocessor A/D Resolution:16 bit
A/D Accuracy:+/- 0.2% FS +/- 1 unit
Environment:0 to 50C, 85% Max. RH (non-condensing)
Operating Temperature:+32 to +125°F (0 to +50°C)
Front Bezel Rating:IP51
Power:16 to 30 VDC (12 VDC powered available upon request)
Current Draw:< 100 mA @ 24 VDC
Analog Retransmission Output:0-20mA, 4-20mA (0-5VDC, 1-5VDC w/ included 250 ohm resistor)
Case Dimensions:1" x 2" x 3" (24mm x 48mm x 75mm)
Panel Cutout Dimensions:1.77" x 0.87" (45 x 22 mm) (1/32 DIN)
Weight:2.1 ounces
