RPPS-HS Hollow Shaft Rotary Potentiometer Angle Position Sensor

OVERVIEW

• 0° to 350° measurement range
• Full 360° mechanical rotation
• Compact lightweight design
• Hollow shaft for ease of mounting


The RPPS-HS series rotary position potentiometer sensors are used to track the rotational position of a target. They provide an analog voltage output proportional to shaft rotation over a total range of 350°. Typical termination for this sensor is a 3-wire 1 meter (36 in) cable, custom options may be available upon request.

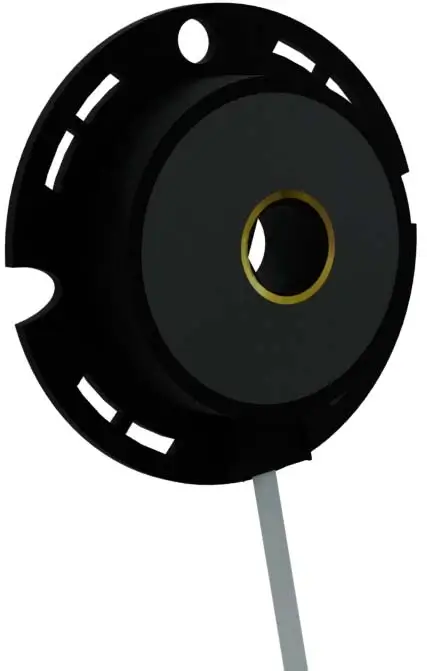

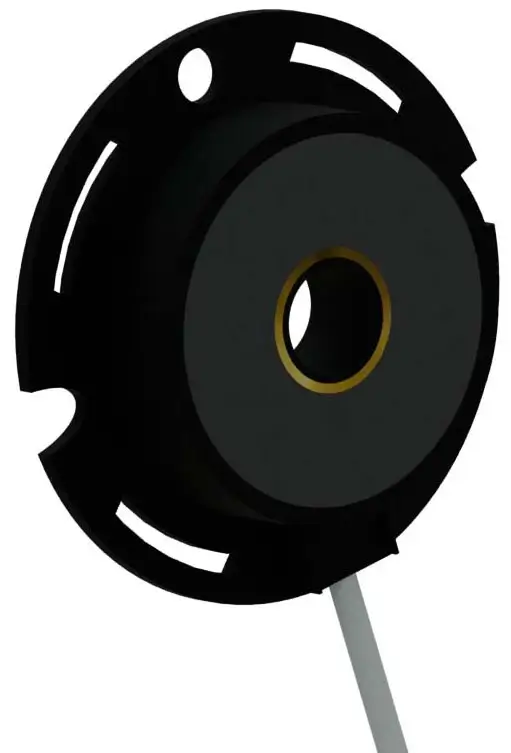

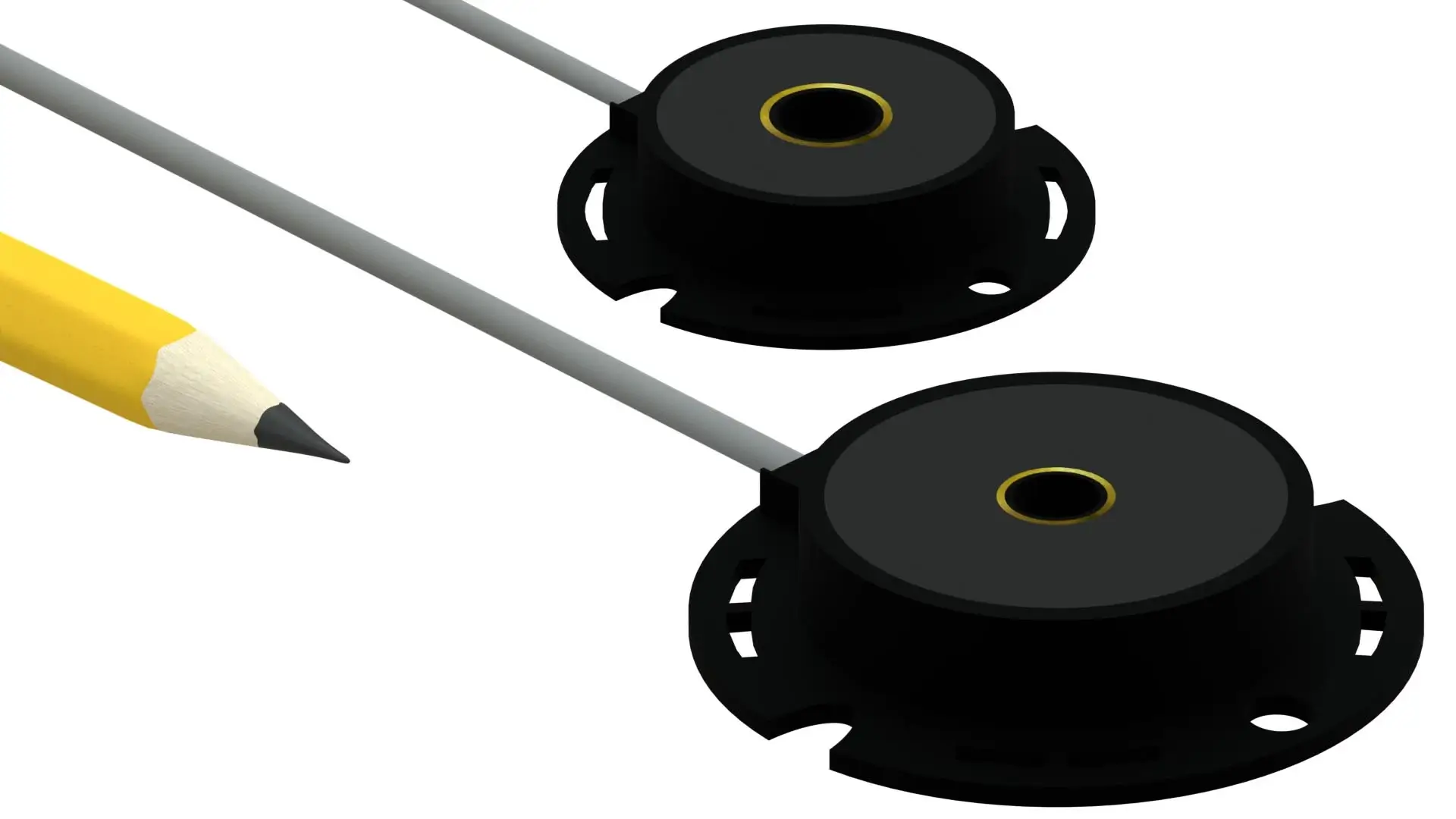

RPPS-HS series sensors are enclosed in a 24mm or 36mm diameter housing, with a centered hollow shaft. Mechanically, the sensor can rotate a full 360°. The resistive potentiometric element is made from conductive plastic. The output signal is ratiometric; from 0% to 100% of excitation voltage, increasing as it is rotated counter-clockwise.

The RPPS-HS has an absolute output characteristic, which is a benefit over incremental output sensors such as optical encoders that lose their position information in the event of a power failure.

RPPS-HS rotary sensors are typically used in applications such as quarter turn valves, flue dampers, throttle position & damper arm tensioning.



Options:

Rotary Sensor Body OD
SKU
RPPS-HS-24-350-036-N
Availability
In Stock
Off
Out of Stock
0
Discontinued
On
Price
$85.00
Add to Cart

TECHNICAL SPECIFICATIONS

Input Voltage:

5 VDC max

Full Scale Output:

0 to 100% of input voltage (potentiometer circuit)

Resolution:

Infinite

Element Type:

Conductive plastic

Operating Current:

Input voltage / Potentiometer resistance value

Non-linearity, Full stroke:
Best Fit Straight Line (BFSL)

<±0.5% (typical), <±1.0% (max)

Operating temperature:

-40°C to 85°C (-40°F to 185°F)

Temperature coefficient:

±0.03% of FSO/°C nominal

Resistance:

5,000Ω ±20%

Repeatability:

0.1°

Shock Rating:

50g (single hit) / IEC68-2-29

Vibration Rating:

20g / IEC68-2-6

IP Rating:

IP61
