BWTC Ready-Made Insulated Beaded Wire Welded Tip Thermocouple

OVERVIEW

• Simple Low Cost Temperature Sensor
• Type J, K, T, or E thermocouple
• Conductors are TIG welded
• FEP Insulated wires
• Designed for research & development applications

• Ideal for Air or Surface Temperature Measurements


MADE IN THE USA

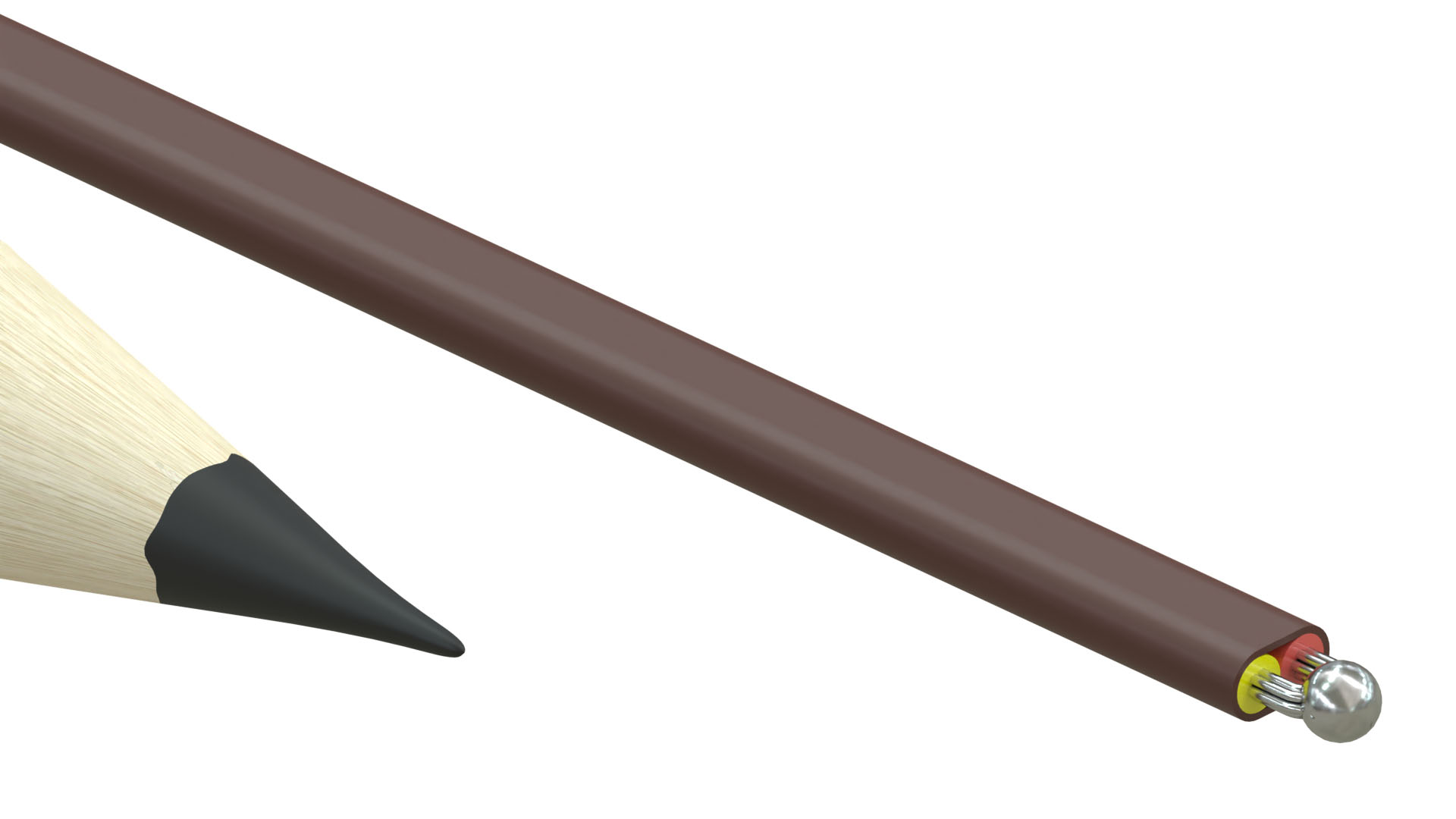

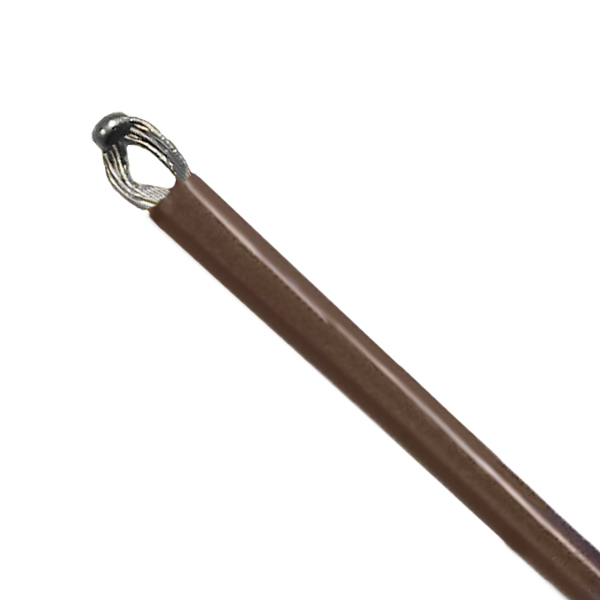

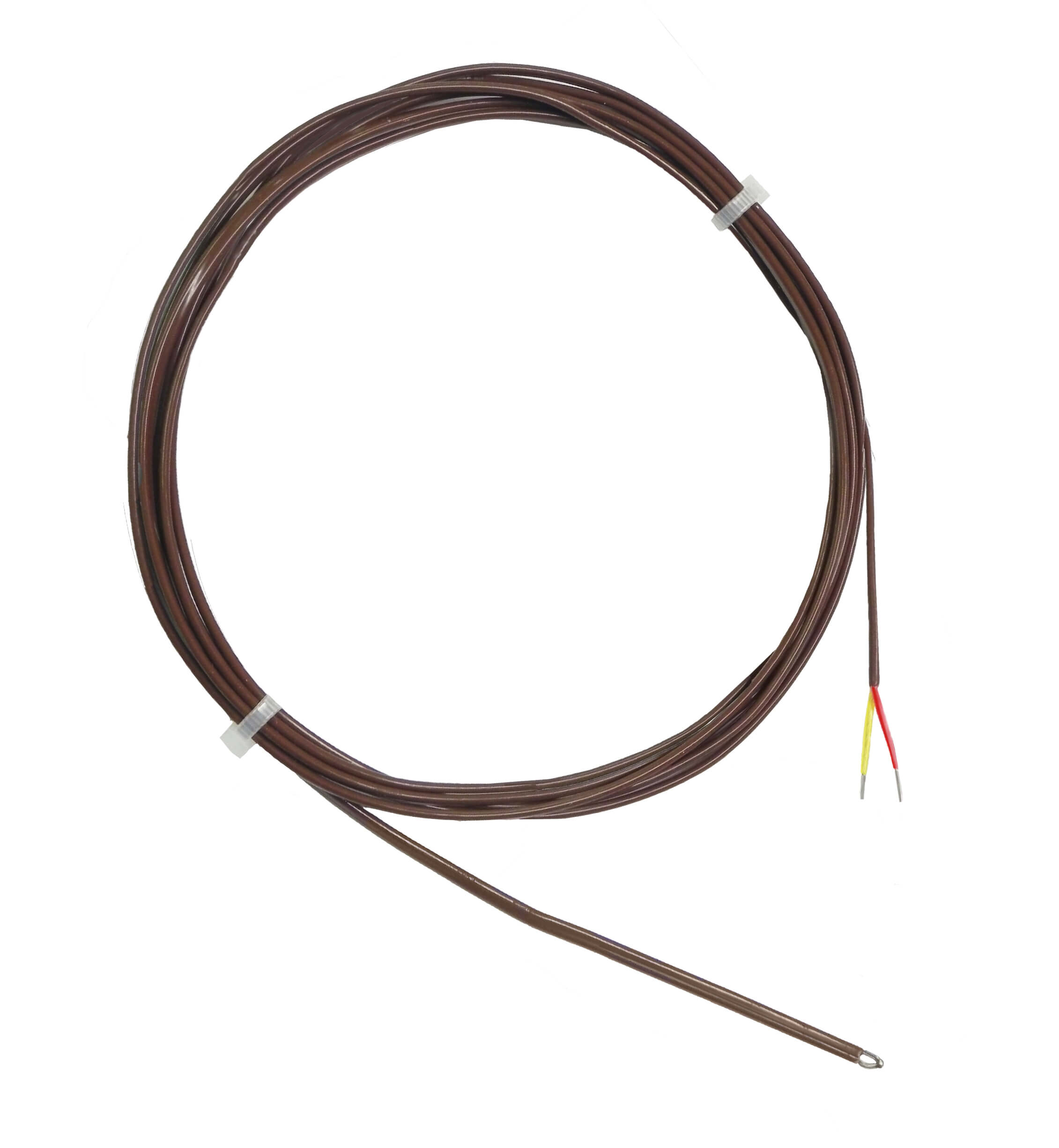

BWTC series Ready-Made Insulated Beaded Wire Thermocouples are an ideal low cost solution for simple temperature measuring applications.  Special limits of error accuracy thermocouple wire is cut to the required length and the conductors are TIG welded to form a measuring junction.  Wire insulation is FEP with FEP outer jacket.

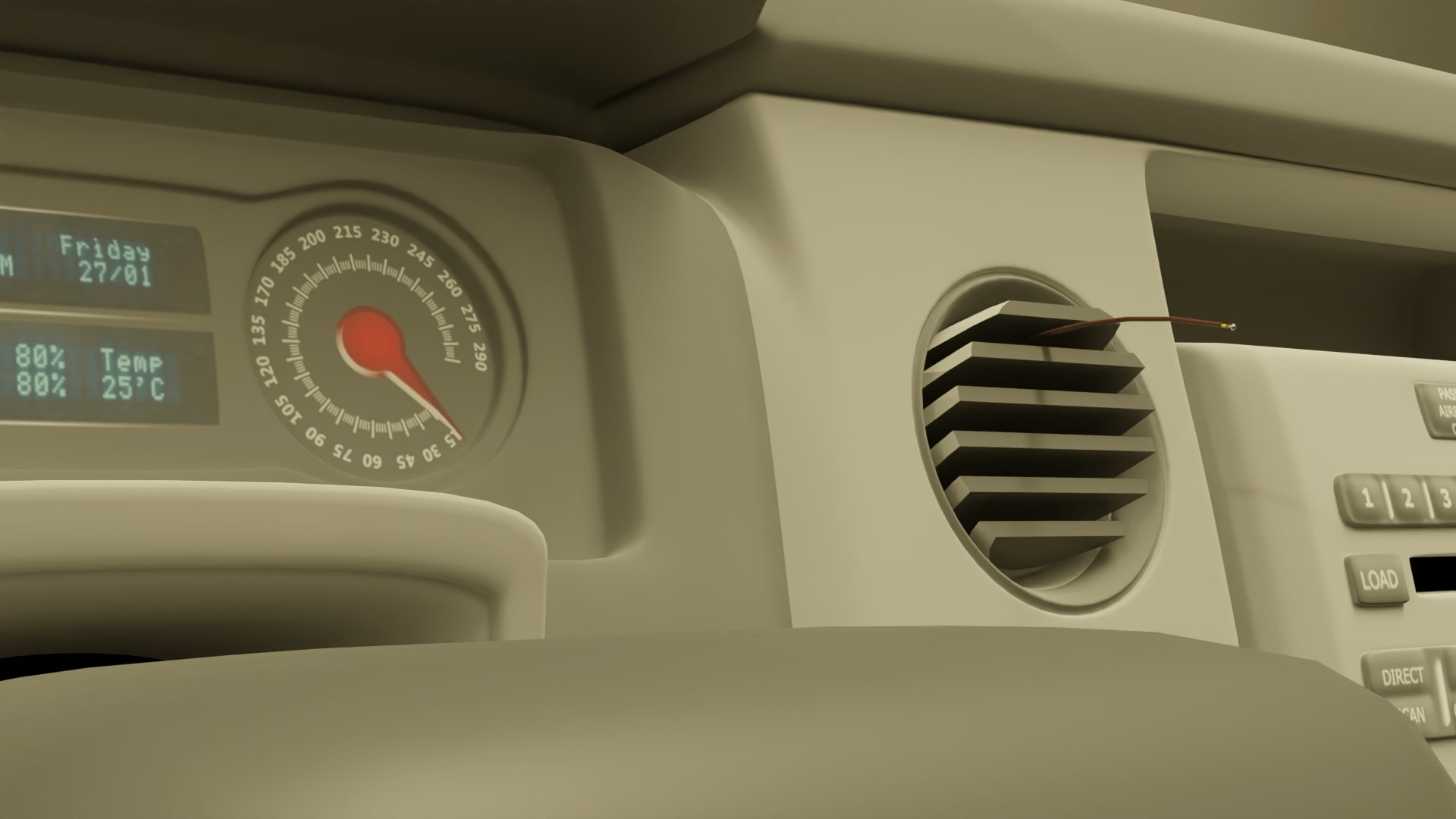

Ideal for, but not limited to, Air or Surface temperature measurements.  As an option, we can install a Mini Connector on the adjacent wire lead termination end.


Options:

Thermocouple Type
Thermocouple Cable Length
Thermocouple Connector
SKU
BWTC-24ST-TT-060-J-N
Availability
In Stock
0
Out of Stock
0
Discontinued
Off
Price
$12.00
Add to Cart

TECHNICAL SPECIFICATIONS

Thermocouple Type:

J, K, T, or E

Accuracy:

Greater of +/-0.4% of reading or +/- 1.1°C (Special Limits of Error)

Measuring Range:

(E = -328 to 1600°F) (J = 32 to 1400°F) (K = -328 to 2300°F) (T = -328 to 700°F)

Cable:

20 or 24 AWG, solid or stranded core

Max Temperature ( PVC Insulated Cable):

+195°F (+90°C)

Max Temperature ( FEP Insulated Cable):

+400°F (+205°C)

Max Temperature ( Fiberglass Insulated Cable):

+900°F (+482°C)
