OVERVIEW
• Diaphragm pressure switch
• Overpressure safety up to 8,700 psi (600 bar)
• Operation voltage up to 250 V, protection class 2, protective insulation
• Explosion protected pressure switches
• Certification according to IECEx scheme

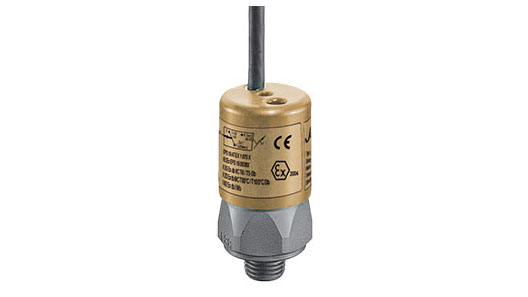

The 0342 / 0343 series diaphragm pressure switch is an explosion-protected pressure switch suitable for explosion protection zones. Switching point can be easily adjusted by the user whilst system in operation.
HGSI is a factory authorized distributor of Suco ESI Technologies pressure switches.
Options:
TECHNICAL SPECIFICATIONS
Field-adjustable pressure range: |
4.3…2175 psi (0.3-150 bar) |
Certification: |
according to ATEX directive 2014/34/EU and IECEx scheme |
Overpressure safety: |
4,350 / 8,700 psi (300 / 600 bar) |
Operation voltage: |
up to 250 V, protection class 2, protective insulation |
Body: |
Zinc-plated steel housing (CrVI-free), |
Power: |
Max 250V |
Current: |
Max 2 A Resistive |
Seal Material: |
NBR (Buna N), EPDM, FKM (Viton®), HNBR |
DOCUMENTS & DOWNLOADS
VIDEOS
PRODUCT NUMBERS
0342-457 60 - 1 - 020 | 0342-458 60 - 1 - 020 | 0342-459 60 - 1 - 020 | 0342-461 60 - 1 - 020 |
0342-457 60 - 2 - 020 | 0342-458 60 - 2 - 020 | 0342-459 60 - 2 - 020 | 0342-461 60 - 2 - 020 |
0342-457 60 - 3 - 020 | 0342-458 60 - 3 - 020 | 0342-459 60 - 3 - 020 | 0342-461 60 - 3 - 020 |
0342-457 60 - 6 - 020 | 0342-458 60 - 6 - 020 | 0342-459 60 - 6 - 020 | 0342-461 60 - 6 - 020 |
0342-457 60 - 9 - 020 | 0342-458 60 - 9 - 020 | 0342-459 60 - 9 - 020 | 0342-461 60 - 9 - 020 |
0342-457 09 - 1 - 020 | 0342-458 09 - 1 - 020 | 0342-459 09 - 1 - 020 | 0342-461 09 - 1 - 020 |
0342-457 09 - 2 - 020 | 0342-458 09 - 2 - 020 | 0342-459 09 - 2 - 020 | 0342-461 09 - 2 - 020 |
0342-457 09 - 3 - 020 | 0342-458 09 - 3 - 020 | 0342-459 09 - 3 - 020 | 0342-461 09 - 3 - 020 |
0342-457 09 - 6 - 020 | 0342-458 09 - 6 - 020 | 0342-459 09 - 6 - 020 | 0342-461 09 - 6 - 020 |
0342-457 09 - 9 - 020 | 0342-458 09 - 9 - 020 | 0342-459 09 - 9 - 020 | 0342-461 09 - 9 - 020 |
0343-460 60 - 1 - 020 | 0343-460 09 - 1 - 020 | ||
0343-460 60 - 2 - 020 | 0343-460 09 - 2 - 020 | ||
0343-460 60 - 3 - 020 | 0343-460 09 - 3 - 020 | ||
0343-460 60 - 6 - 020 | 0343-460 09 - 6 - 020 | ||
0343-460 60 - 9 - 020 | 0343-460 09 - 9 - 020 |
