OVERVIEW
• Zinc-plated steel (CrVI-free)
• Overpressure safety up to 4,350 / 8,700 psi (300 / 600 bar)
• Switching point can also be adjusted during use
• Protection class 2, protective insulation

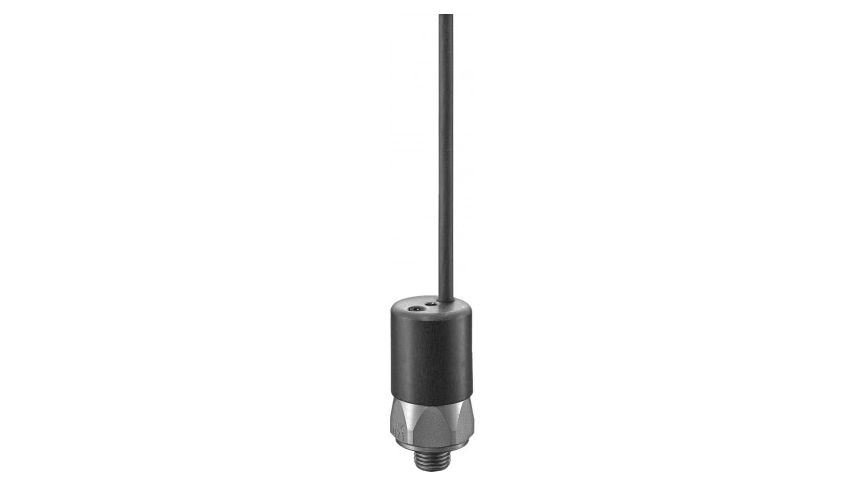

The 0240 / 0241 Series Suco ESI Diaphragm Pressure Switch is a compact ready-wired pressure switch with reliable snap-action micro switch for harsh mobile hydraulic or industrial applications. A wide range of media connections, seal material, and accessories are available. This molded pressure switch with high-protection rating offers the unique feature of being field-adjustable.
HGSI is a factory authorized distributor of Suco ESI Technologies pressure switches.
Options:
TECHNICAL SPECIFICATIONS
|
Field-adjustable pressure range: |
4.3…2175 psi (0.3-150 bar) |
|
Switching point: |
Adjustable while in use |
|
Overpressure safety: |
4350 / 8700 psi (300 / 600 bar) |
|
Connectivity: |
snap-action micro switch with silver contacts |
|
Body: |
Zinc-plated steel (CrVI-free) |
|
Power: |
Max 42V / 250V depending on connection |
|
Current: |
Max 2 A |
|
Seal Material: |
NBR (Buna N), EPDM, FKM (Viton®), HNBR |
DOCUMENTS & DOWNLOADS
VIDEOS
PRODUCT NUMBERS
| 0240-45703-1-003 | 0240-45703-2-003 | 0240-45703-3-003 | 0240-45703-9-003 | 0240-45803-1-006 | 0240-45803-2-006 | 0240-45803-3-006 | 0240-45803-9-006 |
| 0240-45704-1-300 | 0240-45704-2-300 | 0240-45704-3-300 | 0240-45704-9-300 | 0240-45804-1-301 | 0240-45804-2-301 | 0240-45804-3-301 | 0240-45804-9-301 |
| 0240-45709-1-305 | 0240-45709-2-305 | 0240-45709-3-305 | 0240-45709-9-305 | 0240-45809-1-306 | 0240-45809-2-306 | 0240-45809-3-306 | 0240-45809-9-306 |
| 0240-45720-1-310 | 0240-45720-2-310 | 0240-45720-3-310 | 0240-45720-9-310 | 0240-45820-1-311 | 0240-45820-2-311 | 0240-45820-3-311 | 0240-45820-9-311 |
| 0240-45721-1-315 | 0240-45721-2-315 | 0240-45721-3-315 | 0240-45721-9-315 | 0240-45821-1-316 | 0240-45821-2-316 | 0240-45821-3-316 | 0240-45821-9-316 |
| 0240-45903-1-009 | 0240-45903-2-009 | 0240-45903-3-009 | 0240-45903-9-009 | 0240-46103-1-012 | 0240-46103-2-012 | 0240-46103-3-012 | 0240-46103-9-012 |
| 0240-45904-1-302 | 0240-45904-2-302 | 0240-45904-3-302 | 0240-45904-9-302 | 0240-46104-1-303 | 0240-46104-2-303 | 0240-46104-3-303 | 0240-46104-9-303 |
| 0240-45909-1-307 | 0240-45909-2-307 | 0240-45909-3-307 | 0240-45909-9-307 | 0240-46109-1-308 | 0240-46109-2-308 | 0240-46109-3-308 | 0240-46109-9-308 |
| 0240-45920-1-312 | 0240-45920-2-312 | 0240-45920-3-312 | 0240-45920-9-312 | 0240-46120-1-313 | 0240-46120-2-313 | 0240-46120-3-313 | 0240-46120-9-313 |
| 0240-45921-1-317 | 0240-45921-2-317 | 0240-45921-3-317 | 0240-45921-9-317 | 0240-46121-1-318 | 0240-46121-2-318 | 0240-46121-3-318 | 0240-46121-9-318 |
| 0241-46003-1-003 | 0241-46003-2-003 | 0241-46003-3-003 | 0241-46003-9-003 | ||||
| 0241-46004-1-304 | 0241-46004-2-304 | 0241-46004-3-304 | 0241-46004-9-304 | ||||
| 0241-46009-1-309 | 0241-46009-2-309 | 0241-46009-3-309 | 0241-46009-9-309 | ||||
| 0241-46020-1-314 | 0241-46020-2-314 | 0241-46020-3-314 | 0241-46020-9-314 | ||||
| 0241-46021-1-319 | 0241-46021-2-319 | 0241-46021-3-319 | 0241-46021-9-319 |
