OVERVIEW
• Zinc-plated steel (CrVI-free)
• Socket device similar to DIN EN 175301 (DIN 43650)
• Changeover with gold contacts
• Overpressure safety: 10,152 psi (700 bar)
• Differential adjustable at factory

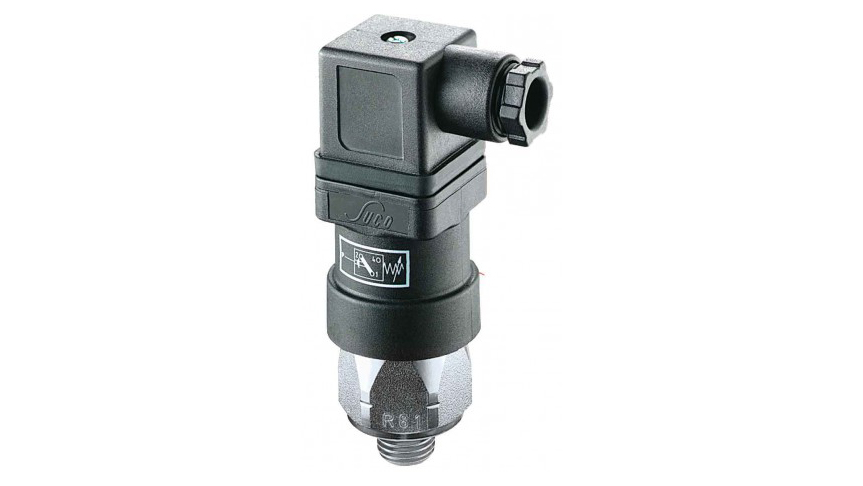

The 0195 series diaphragm pressure switches are made from high-quality industrial-grade materials. Features a special microswitch as changeover with gold contacts. The switching point is easily adjustable. Also available with factory preset switching point. High overpressure stability, adjustable hysteresis.
HGSI is a factory authorized distributor of Suco ESI Technologies pressure switches.
Options:
TECHNICAL SPECIFICATIONS
|
Field-adjustable pressure range: |
725…2900 psi (50-200 bar) |
|
Differential: |
Adjustable at factory |
|
Overpressure safety: |
10,152 psi (700 bar) |
|
Connectivity: |
Changeover with gold contacts |
|
Body: |
Zinc-plated steel body, HEX 27mm (1.06″) |
|
Power: |
Max 250V |
|
Current: |
Max 4 A Resistive |
|
Seal Material: |
NBR (Buna N), EPDM, FKM (Viton®), HNBR |
DOCUMENTS & DOWNLOADS
VIDEOS
PRODUCT NUMBERS
| 0195-46003-1-003 | 0195-46003-2-003 | 0195-46003-3-003 | 0195-46003-9-003 |
| 0195-46001-1-001 | 0195-46001-2-001 | 0195-46001-3-001 | 0195-46001-9-001 |
| 0195-46002-1-002 | 0195-46002-2-002 | 0195-46002-3-002 | 0195-46002-9-002 |
| 0195-46004-1-304 | 0195-46004-2-304 | 0195-46004-3-304 | 0195-46004-9-304 |
| 0195-46009-1-303 | 0195-46009-2-303 | 0195-46009-3-303 | 0195-46009-9-303 |
| 0195-46020-1-301 | 0195-46020-2-301 | 0195-46020-3-301 | 0195-46020-9-301 |
| 0195-46021-1-302 | 0195-46021-2-302 | 0195-46021-3-302 | 0195-46021-9-302 |
