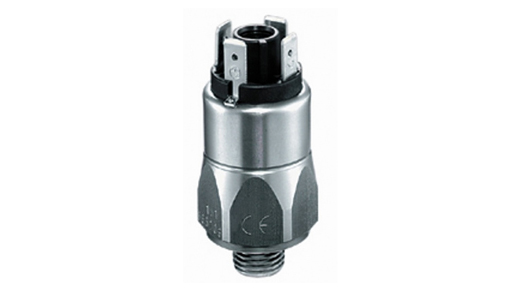

0186 / 0187 Series Suco Diaphragm Pressure Switch

OVERVIEW

• Stainless steel housing (AISI 303 / 1.4305)
• Snap-action micro switch with silver contacts
• Overpressure safety up to 4,350 / 8,700 psi (300 / 600 bar)
  (EPDM-W270 and silicone diaphragm up to 500 psi / 35 bar)
• Differential adjustable at factory
• Includes polyamide cap, protection class IP65


The 0186 / 0187 series is a compact pressure switch with reliable snap-action micro switch for harsh-mobile hydraulic or industrial applications
Very good price/quality ratio. A wide range of media connections, seal material, and accessories are available. Stainless steel body for water, food processing, or similar applications where required.

HGSI is a factory authorized distributor of Suco Technologies pressure switches.


Options:

SKU
0186-XXXXX-X-XXX
Availability
Stock to 5 weeks
1
Price
$999.00
Add to Cart

TECHNICAL SPECIFICATIONS

Differential:

Set at factory: 10…30%

Overpressure safety:

Up to 8700 psi (600 bar)

Body:

Stainless Steel body (AISI 303 / 1.4305)

Connectivity:

Spade Terminals

Maximum Voltage:

250V

Current:

Max. 4 A resistive

Seal material:

NBR (Buna N), EPDM, EPDM-W270, FKM (Viton®), Silicone, HNBR



PRODUCT NUMBERS

0186-45703-1-003 0186-45703-2-003 0186-45703-5-003 0186-45703-3-003 0186-45703-8-003 0186-45703-9-003
0186-45803-1-006 0186-45803-2-006 0186-45803-5-006 0186-45803-3-006 0186-45803-8-006 0186-45803-9-006
0186-45903-1-009 0186-45903-2-009 0186-45903-5-009 0186-45903-3-009 0186-45903-8-009 0186-45903-9-009
0186-46103-1-012 0186-46103-2-012 0186-46103-5-012 0186-46103-3-012 0186-46103-8-012 0186-46103-9-012
0187-46003-1-003 0187-46003-2-003 0187-46003-5-003 0187-46003-3-003 0187-46003-8-003 0187-46003-9-003
